Triple Range Bottom Loading Arm | Model 2504-BC

The Model 2504-BC Triple Range Bottom Loading Arm is designed for road and rail applications, providing safe and efficient transfer of chemical products to a bottom connection point. The arm is typically mounted directly onto a riser post, which can be supplied on request.

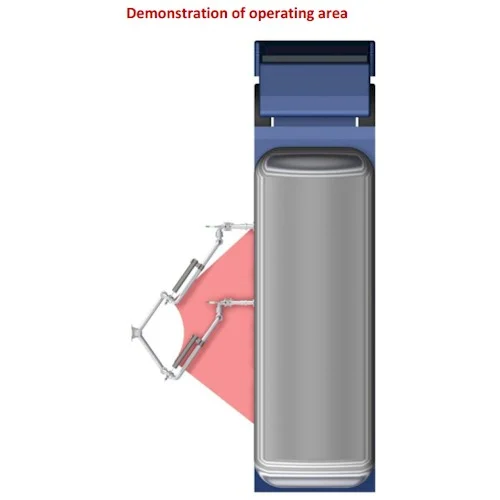

This triple range bottom loading arm incorporates five swivel joints, offering full vertical and horizontal movement. Its range and manoeuvrability make it easy to align with the mating tanker connection. The arm is manufactured as standard in stainless steel and can be fitted with a range of seals to suit most media. Alternative or exotic materials are also available on request.

A compression spring balance cylinder ensures smooth operation, while a ball valve with a locking device provides secure flow control. A vacuum breaker allows fast and efficient drainage. The arm can be supplied in right- or left-hand configuration, so please specify your requirements when enquiring.

Available Sizes:
2″ / 3″ / 4″

Material:
Stainless Steel

Operating Pressure:
Up to 15 Bar

Seal Material:
PTFE

Temperature:
-15°C / +65°C

Accessories:
Safety breakaway coupling model 4222
Locking device for arm in the parking position
Dry disconnect coupling instead of a flange
Stand post and pillow block for supporting the arm
Sight glass
NDT tests (X-Ray)
