Model 05182 Spring Cylinder

Designed for precise arm control, the Spring Cylinder offers a 100° vertical angle (+80° / -20°) for effortless manoeuvrability. Available in Low, Medium, Strong, and Extra Strong variants, it accommodates different arm weights. High-quality compression springs are housed in a sealed carbon steel casing for long-term durability. Model 05182 is maintenance-free, with springs engineered for high-compression resilience.

View all Land Loading Arm Accessories

Need something bespoke?

We can engineer to your specific requirements - today.

Delivery available worldwide

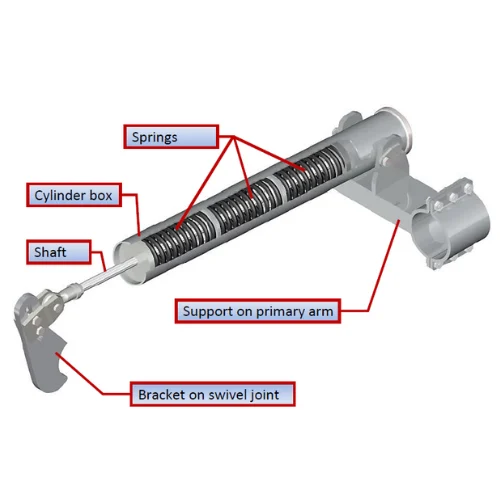

Labelled components of the Spring Cylinder

Description

The Spring Cylinder is a key component on both top and bottom loading arms, providing smooth and balanced movement. It offers a vertical angle of 100° (+80° / -20°) from horizontal, ensuring effortless manoeuvrability across the full range. Designed with operator safety and ease of use in mind, the cylinder supports precise control during loading operations.

Equipped with high-quality compression springs, the Spring Cylinder is available in Low, Medium, Strong, and Extra Strong variants to suit different arm weights and operational requirements. Spring tension and working angles can be adjusted to meet specific needs.

Constructed from durable carbon steel, the cylinder features compression springs housed within a sealed casing for long-lasting performance. The Model 05182 is maintenance-free, with non-replaceable springs engineered to withstand high compression forces.
