Long Range Chemical Top Loading Arm | Model 2385-LR
The Long Range Chemical Top Loading Arm enables multi-compartment tanker loading without repositioning, offering smooth manoeuvrability and safe, efficient chemical transfer across vertical and horizontal planes.
Material
Stainless Steel
Temperature
Between -30°c to 89°c
Type
Top Loading Arm

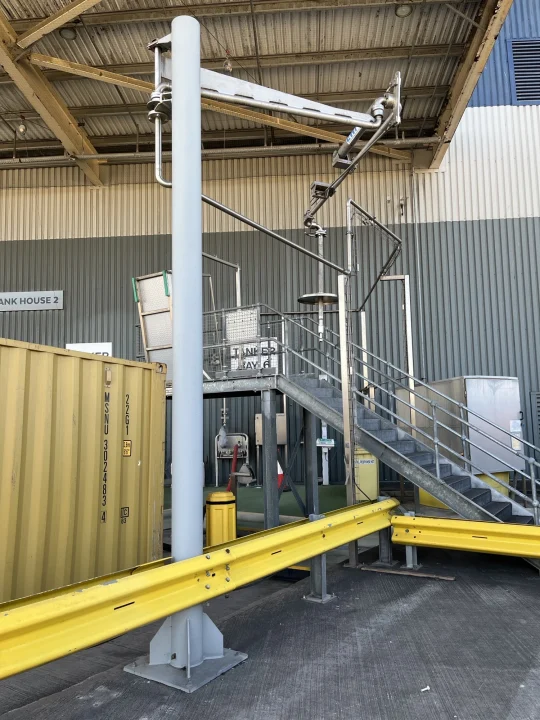

The Long Range Chemical Top Loading Arm provides maximum reach for top loading operations, allowing multiple truck or railcar compartments to be filled without repositioning. Mounted on a horizontal boom, it features three swivel joints and a swivel elbow with handles for precise manoeuvring. Manufactured in stainless steel with a range of seal options, it ensures reliable, safe, and efficient chemical transfer.
Description
The Long Range Chemical Top Loading Arm provides the greatest reach of all top loaders. It is mounted on a horizontal boom assembly, offering a wide range of movement on both vertical and horizontal planes. This allows multiple truck or rail car compartments to be filled without repositioning the vehicle.
The arm is supplied with three swivel joints and one swivel elbow for precise vertical and horizontal positioning. The swivel elbow is fitted with two handles, enabling the operator to manoeuvre the arm easily into the tanker.
The Long Range Chemical Top Loading Arm is manufactured as standard in stainless steel and can be supplied with a range of seals to suit most media. Alternative or exotic materials are also available on request.
Contact information:
Tel: +44 (0) 1763 248 650
Email: sales@ewfm.co.uk
To keep up to date with news on how we are supporting our customers, our latest blogs and new services available, keep checking in on our website throughout the year and follow us on social media.
Additional Specifications
Available Sizes:
2″ / 3″ / 4″
Material:
Stainless Steel
Operating Pressure:
Up to 15 Bar
Seal Material:
PTFE
Temperature:
-15°C / +65°C
Accessories:
Flute beak end
Micro switch to signal when valve opened or closed
NDT tests (X-ray)
Stand post and support units
