Fixed Reach Electrically Heated Top Loading Arm | Model 2570-TRC
A fixed reach electrically heated top loading arm designed for safely filling tankers and rail cars, maintaining consistent temperatures for hot, viscous, or sensitive fluids during transfer operations.
Material
Stainless Steel, Other
Temperature
Between -30°c to 220°c
Type
Top Loading Arm
The Model 2570-TRC Fixed Reach Electrically Heated Top Loading Arm offers a dependable solution for loading temperature-sensitive media including asphalt, bitumen, sulphur, oils, chemicals, and select food products. With options for steam or thermal oil jackets or explosion-proof electric heat tracing, it ensures accurate temperature control. Available in multiple sizes, it supports varying flow rates while maintaining safe, efficient, and consistent transfer performance.
View all Land Loading Arms
Description

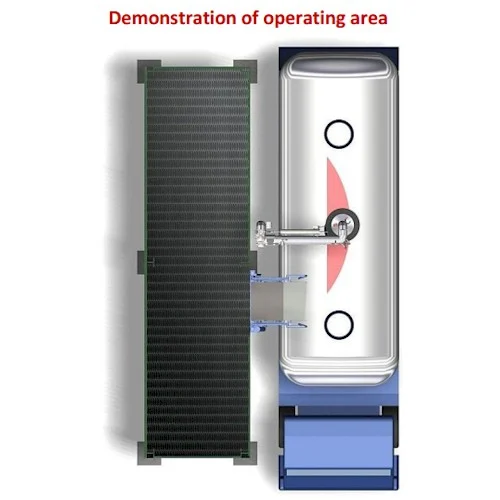

The Fixed Reach Electrically Heated Top Loading Arm is designed for filling rail cars and road tankers at a fixed manhole position. It provides a reliable solution for handling hot fluids such as asphalt, sulphur and bitumen, and is also suitable for certain food products, chemicals, oils and resins.
Heating options include either jackets with steam or thermal oil connection lines (see Model 2570-JACK) or explosion-proof certified electrical heat tracing for precise temperature control. This ensures the media stays at the correct temperature throughout the loading process.
The arm is available in three sizes to match different flow requirements:
- 3″ with a maximum flow rate of 35 m³/h
- 4″ with a maximum flow rate of 60 m³/h
- 6″ with a maximum flow rate of 125 m³/h
This combination of fixed reach and integrated heating makes the Fixed Reach Electrically Heated Top Loading Arm ideal for sites where temperature-sensitive loading is essential.
Contact information:
Tel: +44 (0) 1763 248 650
Email: sales@ewfm.co.uk
To keep up to date with news on how we are supporting our customers, our latest blogs and new services available, keep checking in on our website throughout the year and follow us on social media.
Additional Specifications
Available Sizes:
3″ / 4″ / 6″
Material:
Stainless Steel
Operating Conditions:
Design Pressure 10.0 Bar G
Test Pressure 15.0 Bar G
Temperature:
-15° C / +200°C
Seal Material:
Fluoroloy K
Accessories:
Smoke suction system (with cover and flexible line flanged end)
Level sensor (pneumatic or electronic) installed on cover or positional spider
Pneumatic control for vertical movement
Loading valve pneumatically operated
Vacuum breaker pneumatically operated
Insulation up to the final swivel
NDT test ( X-ray-LP-MT)
