Swivel Joint 3996 Series
A compact carbon steel solution, minimises pipework height with durable stainless steel sealing, ideal for space constrained, high performance applications.
Material
Carbon Steel
Pressure
Vacuum, Between 0 to 10 bar
Temperature
Between -30°c to 65°c
The Swivel Joint 3996 Series, with its low profile carbon steel design, minimises vertical height in articulated pipework, perfect for pairing with loading arms. Featuring dual ball bearing rows and optional stainless steel sealing surfaces, it ensures durability and reliability. Available in 3″ and 4″ sizes with butt weld ends, it supports various configurations for demanding applications.
Description

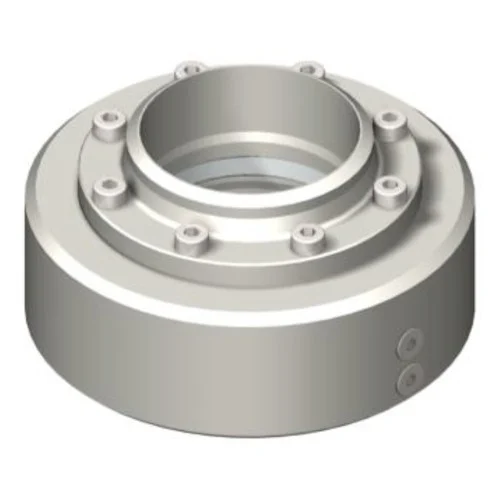

The Swivel Joint 3996 Series is a low-profile swivel joint specifically designed for installations with limited vertical height, providing an ideal solution for articulated pipework where reduced clearance is required. Its compact design allows it to be paired seamlessly with our range of loading arms, making it particularly suitable for systems where minimising height is critical.

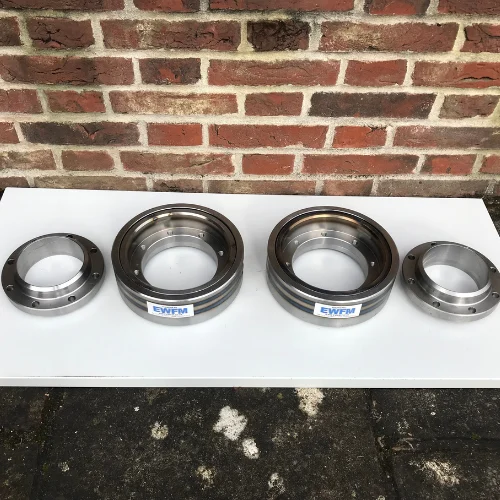

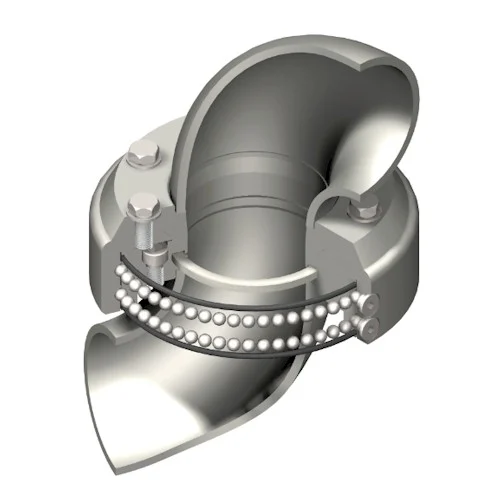

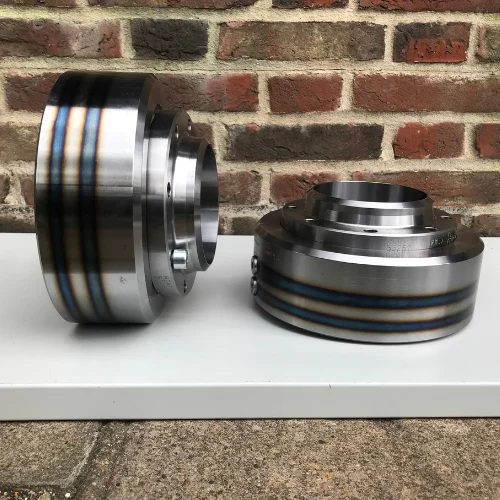

Constructed in carbon steel with butt weld ends, the 3996 Series is available in 3″ and 4″ sizes. The swivel features two rows of ball bearings on hardened and ground tracks, offering reliable performance under standard loads and typical operating conditions. For enhanced durability, stainless steel sealing surfaces are also available, extending the service life of the swivel joint.
The Swivel Joint 3996 Series can be supplied individually or fabricated with elbows and end fittings in various configurations, as detailed in the specifications, providing flexibility for customised installations and diverse piping requirements.
Contact information:
Tel: +44 (0) 1763 248 650
Email: sales@ewfm.co.uk
To keep up to date with news on how we are supporting our customers, our latest blogs and new services available, keep checking in on our website throughout the year and follow us on social media.
Additional Specifications
Available Sizes:
3″ / 4″ / 6″ / 8″
Materials:
Carbon Steel
Pressure:
Up to 10 Bar G
Styles:
20 / 30 / 40 / 50 / 60 / 70 / 80 / 10
End Connections:
Flanged – PN / DIN / ANSI
Threaded – BSP / NPT / SAE / JIC / RJT
Weld end – Schedule 10 / 40 / 80
Specials – Tri Clamp / Hammer Lug Union
Seals:
Viton® / Buna N
