Size
Between 0.5 to 72 inches
½” to 72”, available in various materials & configurations, with designs suitable for applications across all industries
Swivel Joint Scissors
Swivel Joint Scissors combine Swivel Joints and pipe elbows to bridge long distances, providing horizontal and vertical movement while ensuring secure, efficient media transfer in demanding applications.
Material
Aluminium, Carbon Steel, Duplex Steel, Stainless Steel, Super Duplex Steel
Pressure
Vacuum, Between 0 to 51 bar
Temperature
Between -30°c to 220°c or more
Swivel Joint Scissors are designed to bridge substantial distances, combining swivel joints, welded pipes, and elbows to deliver secure and efficient media transfer. Capable of simultaneous horizontal and vertical movements, they are ideal for applications such as sprinkler systems, walking beam furnaces, and multi-stage presses. Customisable and easy to maintain, they ensure optimal performance and adaptability for diverse industrial needs.
Description
Swivel Joint Scissors combine swivel joints, welded pipes, and pipe elbows to create a versatile solution for bridging substantial gaps in piping systems. They are particularly effective in applications where hoses or pipework are subject to significant torsion, providing a reliable means of conveying fluids or media over considerable distances.

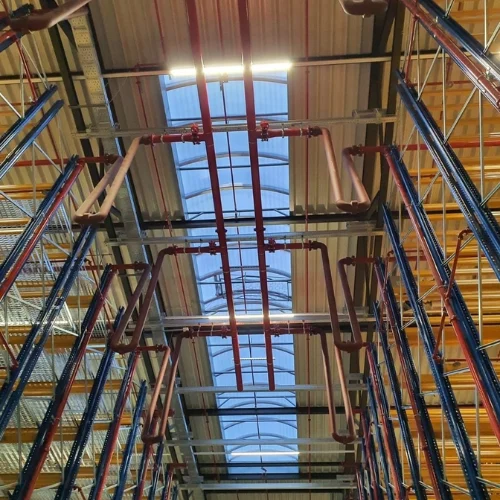

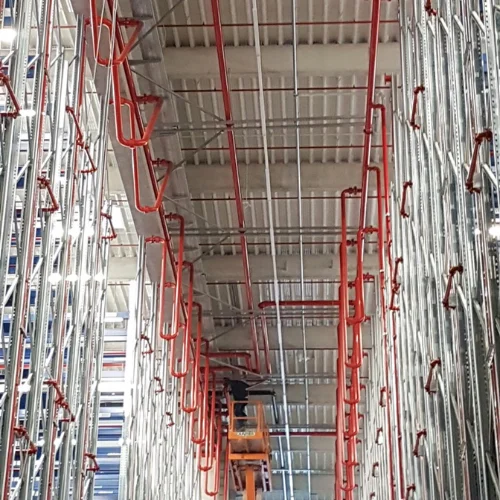

The design of the Swivel Joint Scissors allows for simultaneous horizontal and vertical swivel movements, making them well-suited for applications that require multi-directional articulation. These swivels are commonly used in sprinkler systems, walking beam furnaces, multi-stage presses, and ovens, demonstrating their adaptability across a wide range of industrial environments.
Constructed from standard EWFM materials, these offer efficient and straightforward seal replacement, minimising downtime and maintenance effort. Each unit is custom-designed to meet specific operational requirements, ensuring that the swivel precisely matches the needs of the application and delivers optimal performance, durability, and efficiency.
Contact information:
Tel: +44 (0) 1763 248 650
Email: sales@ewfm.co.uk
To keep up to date with news on how we are supporting our customers, our latest blogs and new services available, keep checking in on our website throughout the year and follow us on social media.
Additional Specifications
Available Sizes:
From 0.5” up to 48”
Materials:
Carbon Steel (painted or not pained)
Stainless Steel (304, 304L, 316L, 316Ti)
Duplex Steel
Super Duplex Steel
Other exotic material on request
Pressure:
In excess of 1379 Bar G
End Connections:
Flanged – ANSI / RTJ / DIN / API / JIS / ISO
Seals:
PTFE Compound / Others available on request
