Swivel Joint 2175 Series

Size

Between 1 to 6 inches

Material

Aluminium, Carbon Steel, Duplex Steel, Stainless Steel, Super Duplex Steel

Pressure

Vacuum, Between 0 to 40 bar

Temperature

Between -30°c to 220°c or more

The 2175 Series Swivel Joint is designed for long-lasting performance and ease of maintenance. Available in aluminium, stainless steel, carbon steel, and specialist materials, it’s suited to a wide range of applications, including loading arms, hose reels, floating suction units, and articulated roof drains. Supplied assembled or disassembled, it provides flexibility for installation and seamless integration into existing systems.

Need something bespoke?

We can engineer to your specific requirements - today.

Delivery available worldwide

Outer body of the Model 2175 Swivel Joint

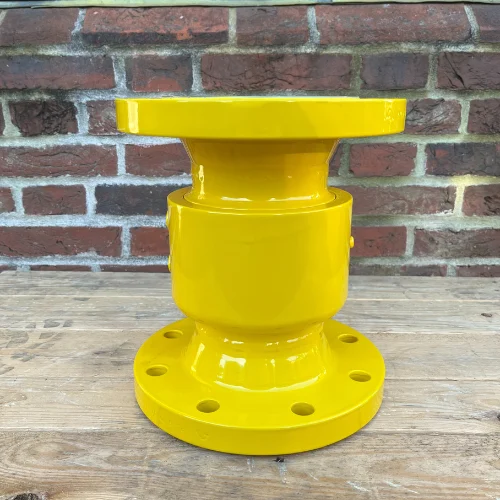

4" Model 2175 Swivel Joint S.S. 316L painted to the customers requirement — 4 Model 2175 Swivel Joint S.S. 316L painted to the customers requirement

4" Model 2175 Swivel Joint, painted in Green Bergesen — 4 Model 2175 Swivel Joint, painted in Green Bergesen

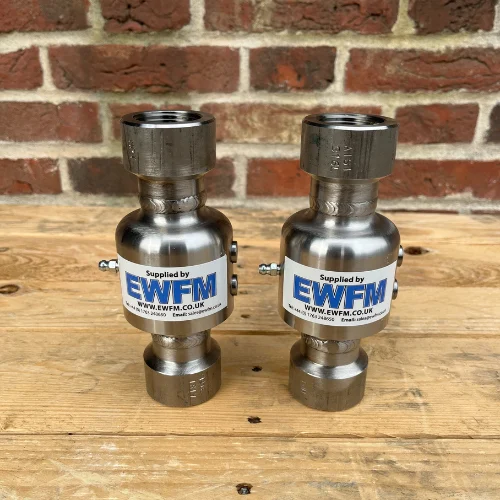

1" Model 2175 SS with 1" female NPT ends — 1 Model 2175 SS with 1 female NPT ends

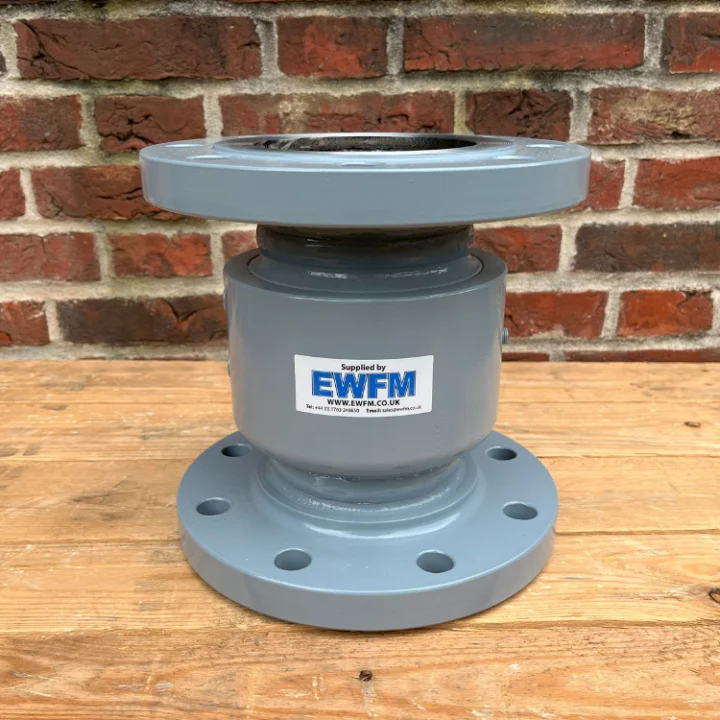

A 4" Carbon Steel, Model 2175 Swivel Joint featuring PN16 flanges, and constructed to a Style 20 configuration. — A 4 Carbon Steel, Model 2175 Swivel Joint featuring PN16 flanges, and constructed to a Style 20 configuration.

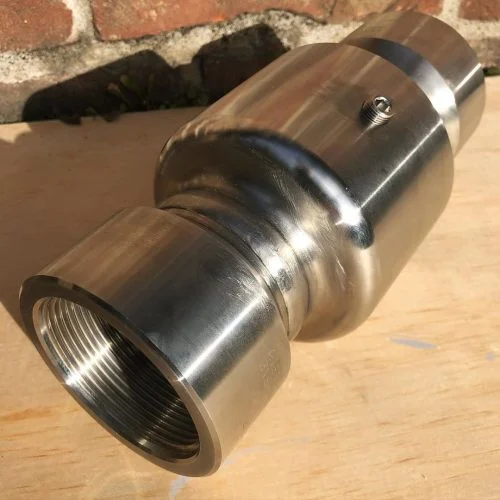

2" Model 2175 Swivel Joint with Female BSP Ends — 2 Model 2175 Swivel Joint with Female BSP Ends

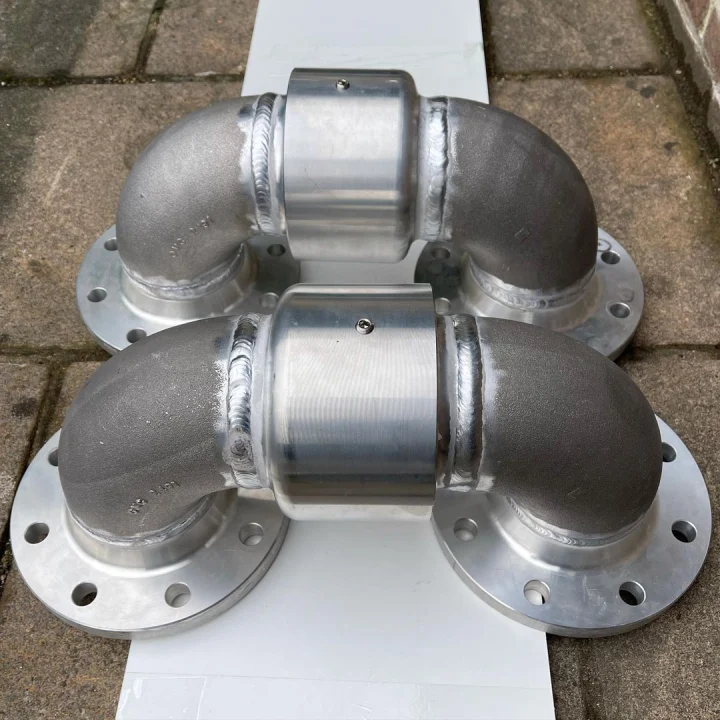

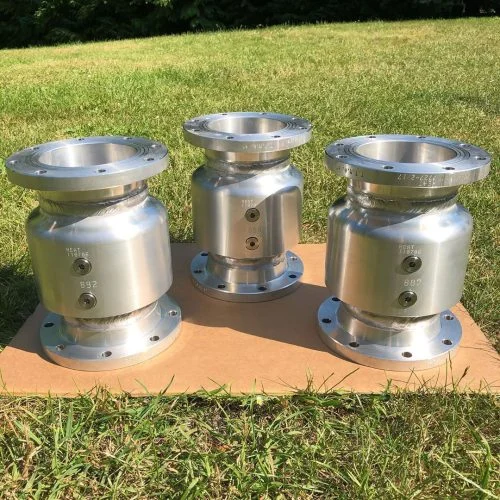

4" Aluminium Model 2175 Swivel-Joints — 4 Aluminium Model 2175 Swivel-Joints

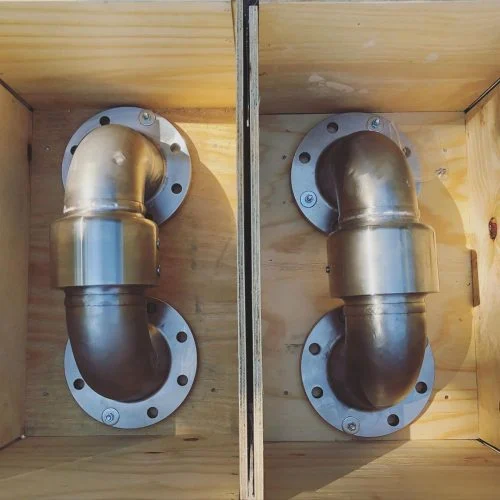

4" Stainless Steel Swivel Joints made to a style 40 — 4 Stainless Steel Swivel Joints made to a style 40

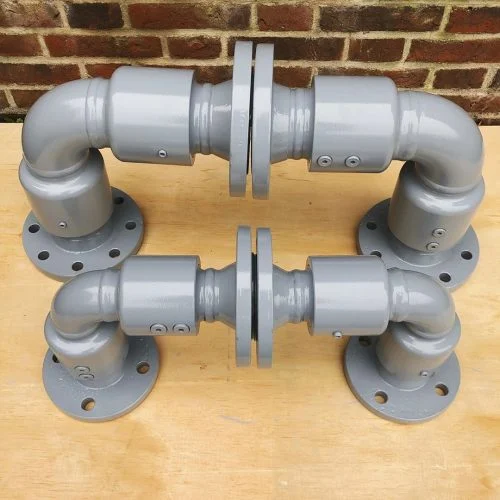

Style 60 Swivel Joints in Carbon Steel Construction

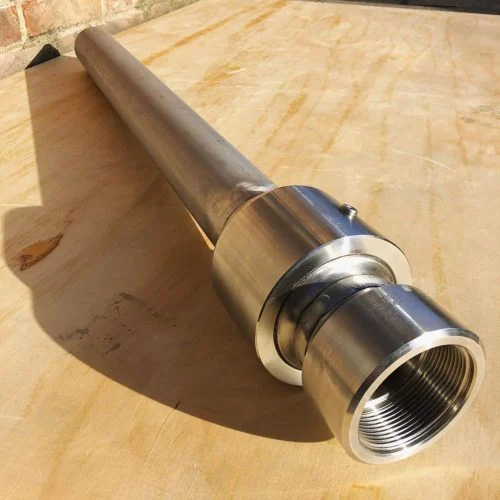

2" Model 2175 Swivel with extended pipe and BSP End — 2 Model 2175 Swivel with extended pipe and BSP End

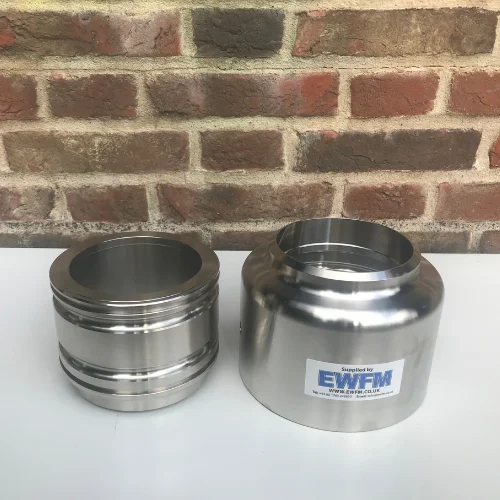

4" Stainless Steel Model 2175 Swivel Joint — 4 Stainless Steel Model 2175 Swivel Joint

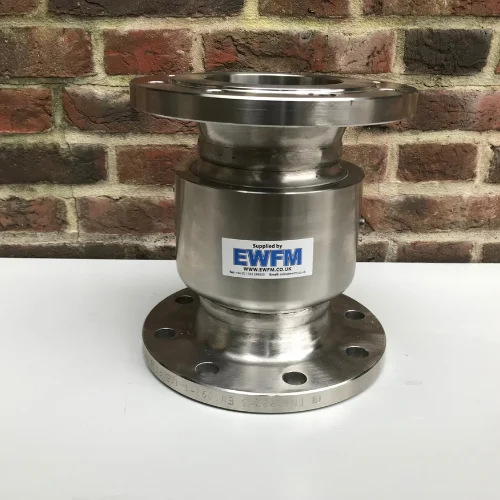

Style 20 Model 2175 Swivel Joint with PN16 flanges

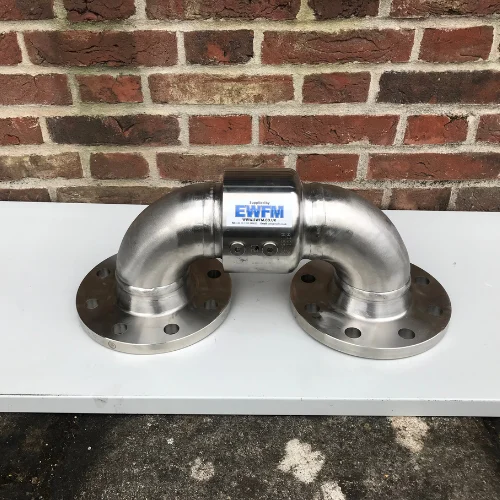

3" 2175 Swivel Joint made to a style 40 with flanged end connections — 3 2175 Swivel Joint made to a style 40 with flanged end connections

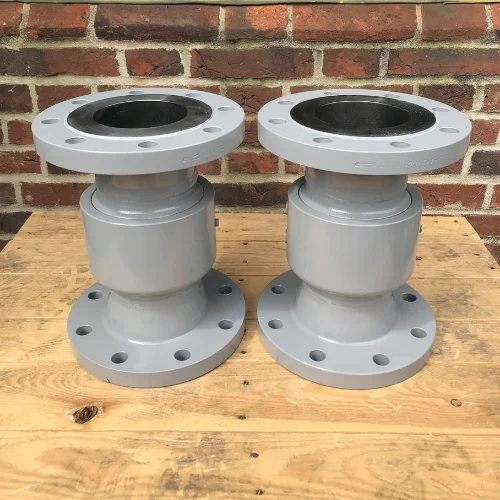

2 x 4" 2175 Swivel Joint painted in a three coat marine paint — 2 x 4 2175 Swivel Joint painted in a three coat marine paint

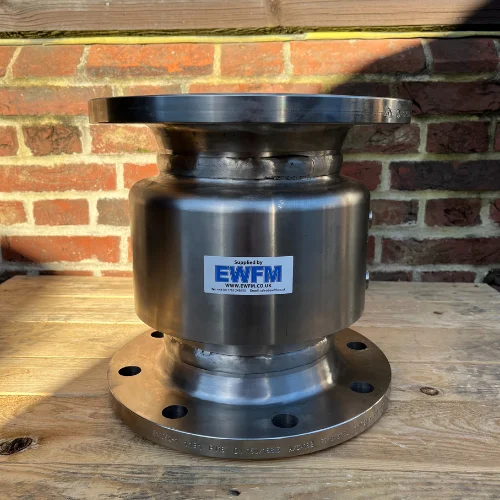

6" 2175 S.S. Style 20 PN16 Swivel Joint — 6 2175 S.S. Style 20 PN16 Swivel Joint

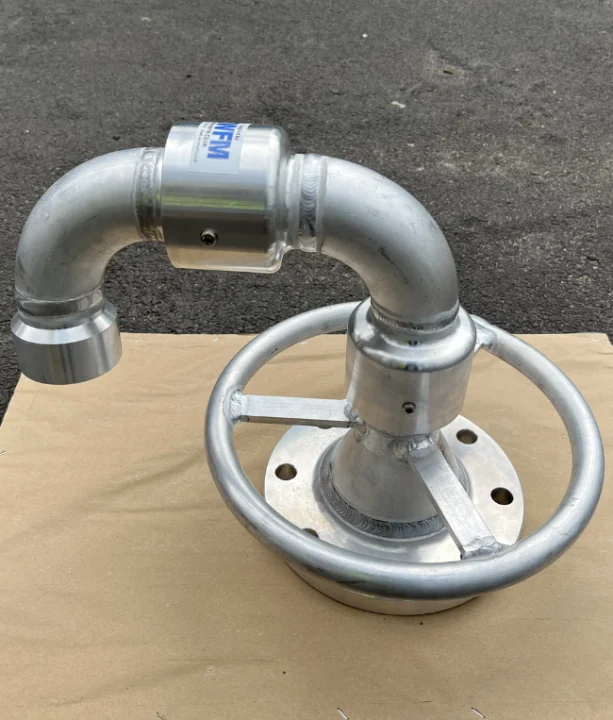

A 2" Model 2175 Swivel Joint in aluminium and a Style 50 configuration

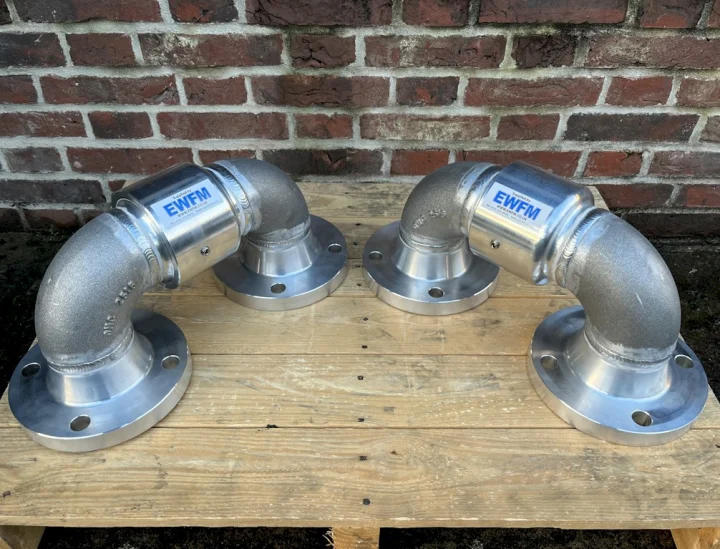

Two 3" model 2175 Swivel Joints in Aluminium construction which has been supplied in a Style 40 conformation — Two 3″ model 2175 Swivel Joints in Aluminium construction which has been supplied in a Style 40 conformation

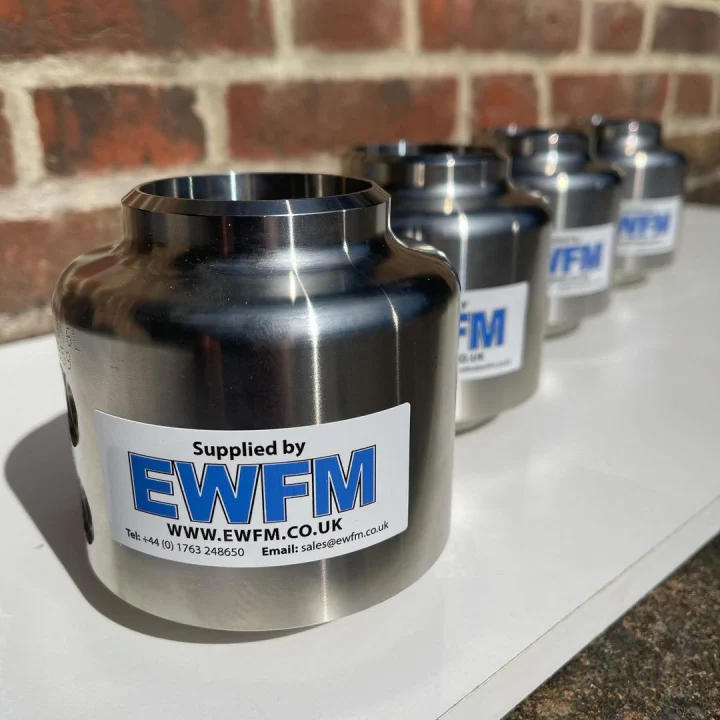

6 x Model 2175 Swivel Joints, manufactured in stainless steel with energised primary seals and Buna N secondary seals

A 4" Stainless Steel 2175 Swivel Joint painted in Bergesen Green — A 4″ Stainless Steel 2175 Swivel Joint painted in Bergesen Green

2-Inch-Swivel-with-Extended-Pipe-and-BSP-End — 2-Inch-Model-2175-Swivel-Joint-with-100-X-Ray-of-Welds

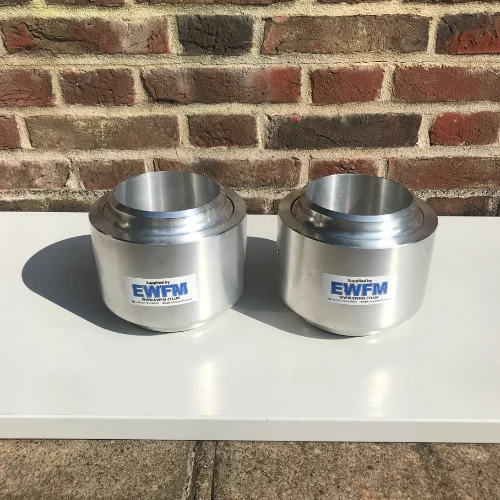

2 x 4" SS Model 2175 Swivel Joints — 2 x 4 SS Model 2175 Swivel Joints

Description

The Swivel Joint 2175 Series is a high performance Swivel Joint designed for versatile industrial applications, offering robust operation, ease of maintenance, and extended service life. Manufactured in Aluminium, Stainless Steel, Carbon Steel, and specialist alloys, the 2175 Series can be tailored to meet the specific requirements of a wide range of industries. It is suitable for use with Loading Arms, Hose Reels, Floating Suction Units, and Articulated Floating Roof Drains, providing reliable operation under demanding conditions.

The Swivel Joint 2175 Series features a dual-row ball bearing assembly, ensuring smooth, low-friction performance even under significant load and repeated movement. This swivel joint can be supplied individually or fabricated with elbows and end fittings in multiple configurations, enabling integration into complex systems. We also offers the 2175 Series either pre-assembled or disassembled, giving the end user the flexibility to install via welding or on-site assembly depending on project requirements.

Contact information:

Tel: +44 (0) 1763 248 650

Email: sales@ewfm.co.uk

To keep up to date with news on how we are supporting our customers, our latest blogs and new services available, keep checking in on our website throughout the year and follow us on social media.

Additional Specifications

Available Sizes:
1″ / 1.5″ / 2″ / 2.5″ / 3″ / 4″ / 6″

Materials:
Stainless Steel 304L or 316L / Aluminium / Carbon Steel

Pressure:
Up to 40 Bar G

End Connections:
Flanged – PN / DIN / ANSI /
Threaded – BSP / NPT / SAE / JIC / RJT
Weld end – Schedule 10 / 40 / 80
Specials – Tri Clamp / Hammer Lug Union

Seals:
Viton® / Buna N
