Seal Type
Secondary
½” to 72”, available in various materials & configurations, with designs suitable for applications across all industries

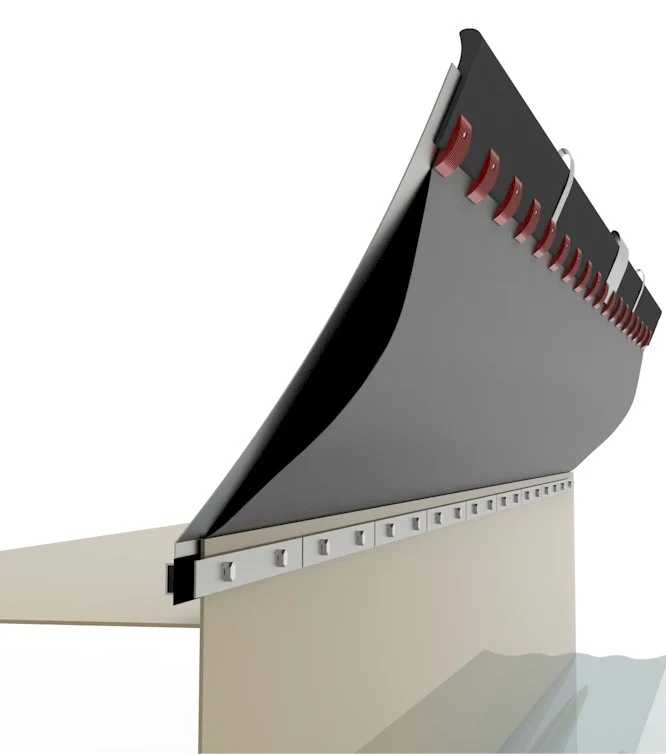

Secondary Compression Plate Seal (CPI)
Secondary Compression Plate Seal (CPI) provides a robust secondary barrier for floating-roof tanks, allowing installation while in service and ensuring consistent sealing across diverse rim spaces.
Rim Space
Between 120mm to 200mm
Roof Type
External
Designed for all sizes of floating-roof tanks, the Secondary Compression Plate Seal (CPI) offers a reliable vapour-tight barrier without interrupting tank operations. Its external fixings, adjustable compression plate, synthetic wiper, and low-permeability membrane deliver consistent performance, while mounting flexibility accommodates vertical or horizontal rim angles. This seal reduces emissions and protects tank integrity with minimal maintenance and downtime.
View all Storage Tank Equipment and Storage Tank Seals
Description
The Secondary Compression Plate Seal (CPI) designed for floating roof tanks of all sizes, suitable for all grades of crude and refined products. It is engineered to be installed while the tank is in service, eliminating the need for hot work and minimizing downtime.
The seal features a compression plate, a synthetic rubber wiper, and a vapour barrier membrane. The compression plate can be manufactured in either galvanised steel or stainless steel, while the membrane is typically made from polyurethane-coated nylon fabric with very low vapour permeability.
All fixings are positioned on the outside of the seal, leaving the tank shell side completely smooth. This design reduces the risk of damage when the roof floats above the tank shell. The Secondary Compression Plate Seal (CPI) can be mounted on either a vertical upstand or a horizontal angle, and the dimensions of the compression plate can be adapted to suit a wide range of nominal rim spaces.
Installation is straightforward: the CPI Secondary Seal is simply bolted in position on top of the roof rim, providing a reliable seal without interrupting tank operations.
Contact information:
Tel: +44 (0) 1763 248 650
Email: sales@ewfm.co.uk
To keep up to date with news on how we are supporting our customers, our latest blogs and new services available, keep checking in on our website throughout the year and follow us on social media.
Additional Specifications
Material Specification:
Compression Plate and Clamp Channels:
Galvanised / Stainless Steel
Wiper:
Synthetic rubber
Vapour Barrier:
Teflon (Fiberglass) / Calcium Silicate / Urethane / Polyurethane
Shunts:
Stainless Steel
Typical Service Life:
10-20 years
Technical data:
Rim space:
200 mm ± 100 mm (standard)
Aromatic resistance:
100%
