Size
Between 1 to 12 inches
½” to 72”, available in various materials & configurations, with designs suitable for applications across all industries

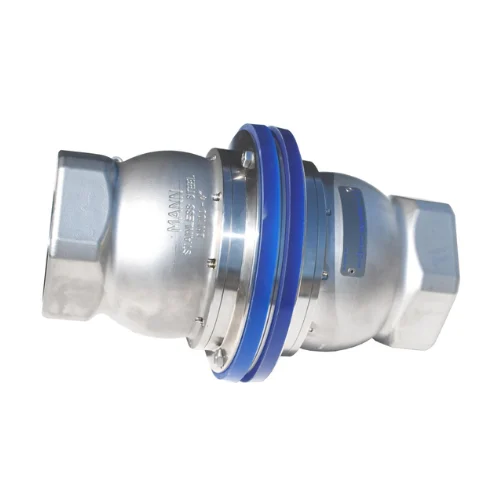

Marine Breakaway Couplings
Marine Breakaway Couplings protect against pull-away accidents, stopping unwanted product release and safeguarding equipment, ensuring safe, reliable, and efficient operations in marine fluid transfer systems.
Material
Aluminium, Stainless Steel
Pressure
Between 0 to 25 bar
Seal Type
Epdm, Ffkm, Fkm, Nbr

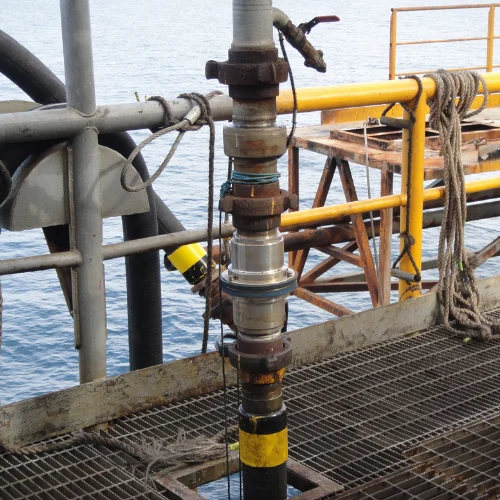

Installed between two hose strings, Marine Breakaway Couplings release only under inline pull, ideal for ship-to-ship and offshore transfers. They feature reinforced housings to resist torsion and bending, maintaining consistent performance in harsh marine conditions. Internal valves close automatically upon separation, and stainless steel break bolts ensure corrosion resistance, high flow rates, and efficient, reliable operation.
View all Breakaway Couplings and MannTek Couplings
Description
Marine Breakaway Couplings prevent pull-away accidents, protect terminal and loading/unloading equipment, and eliminate unwanted product release in marine operations. Designed to release only under inline pull, these couplings are installed between two hose strings, with both ends connected to hose, making them suitable for ship-to-ship transfers and ship-to-offshore platform applications.
The couplings feature the same reliable internal mechanism as Industrial Breakaway Couplings, with additional external reinforcements to resist torsional and bending forces in marine environments. This prevents premature activation and ensures consistent safety performance.
These Breakaway Couplings are easy to operate and reset on-site with minimal tools and training. They provide high flow rates with low pressure drop for efficient operations. Stainless steel break bolts deliver enhanced corrosion resistance, ensuring long-lasting durability in harsh marine conditions.
Contact information:
Tel: +44 (0) 1763 248 650
Email: sales@ewfm.co.uk
To keep up to date with news on how we are supporting our customers, our latest blogs and new services available, keep checking in on our website throughout the year and follow us on social media.
Additional Specifications
Available Sizes:
1″ / 2″ / 2.5″ / 3″ / 4″ / 5″ / 6″ / 7″ / 8″ / 9″ / 10″ / 11″ / 12″
Materials:
Aluminium / Stainless Steel
Pressure:
Up to 25 Bar G
End Connections:
Flanged – ANSI or Din
Threaded – BSP or NPT
Victaulic connection
Seals:
FKM / EPDM / FFKM / NBR
