Size
Between 1 to 8 inches
½” to 72”, available in various materials & configurations, with designs suitable for applications across all industries

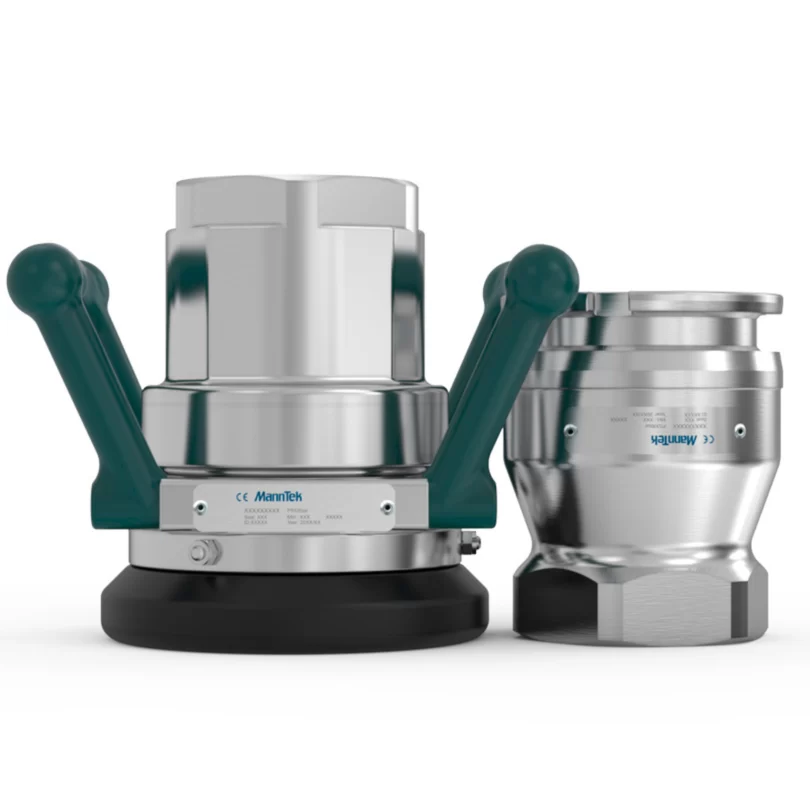

Liquid Cooling Couplings
Liquid Cooling Couplings provide secure, leak-free connection and disconnection for bulk coolant transfer within data centre cooling systems, supporting safe maintenance and reliable operation of critical thermal infrastructure.
Material
Aluminium, Brass, Hastelloy, Peek, Pvdf, Stainless Steel, Titanium
Pressure
Between 10 to 25 bar
Seal Type
Epdm, Ffkm, Fkm, Nbr
Liquid cooling couplings are engineered for closed-loop thermal management systems used in data centres and high-performance computing infrastructure. Suitable for water, glycol and dielectric fluids, they are available in Stainless Steel, Aluminium, Hastelloy and other material configurations. Incorporating the established STANAG 3756 bayonet coupling standard, they provide secure, repeatable connection and disconnection for larger cooling circuits and bulk coolant transfer applications.
View all Couplings and MannTek Couplings
Description
Liquid cooling couplings are designed for the safe and efficient transfer of coolant within large-scale thermal management systems used in data centres and high-performance computing environments. As cooling demands increase with the growth of AI and hyperscale infrastructure, reliable fluid connections have become essential for maintaining system performance and operational continuity.
These couplings provide secure connection and disconnection of larger bore cooling lines used in primary and secondary cooling circuits, supporting maintenance, commissioning and system expansion activities without compromising circuit integrity. Their design helps minimise fluid loss and maintain coolant cleanliness during routine operations.
Common applications include coolant distribution units (CDUs), heat rejection systems, load bank cooling circuits, chiller connections and bulk filling or draining operations involving water, glycol mixtures and dielectric fluids. They are also well suited to temporary cooling systems and modular data centre installations where dependable, repeatable connections are required.
Available in stainless steel, aluminium, Hastelloy and other material configurations, liquid cooling couplings can be specified to suit a wide range of operating conditions and media compatibility requirements. Their robust construction and established bayonet interface design provide long service life and consistent performance in demanding cooling applications.
As liquid cooling technology becomes increasingly important in AI and next-generation computing environments, dependable large-bore coupling systems play a vital role in ensuring efficient, maintainable and scalable cooling infrastructure.
Contact information:
Tel: +44 (0) 1763 248 650
Email: sales@ewfm.co.uk
To keep up to date with news on how we are supporting our customers, our latest blogs and new services available, keep checking in on our website throughout the year and follow us on social media.
Additional Specifications
Available Size:
1” / 2” / 2.5″ / 3” / 4” / 6” / 8”
Material:
Aluminium / Brass / Stainless Steel / Hastelloy / PEEK / Titanium
Others available on request
Pressure:
Up to 25 BAR (Five times the safety factor)
Connections:
Threaded (BSP & NPT)
Flanged (ANSI, EN, TW, TTMA, JIS, TRICLAMP)
Others available on request
Seals:
FKM / EPDM / NBR / Chemraz® / Kalrez®
