Industrial Breakaway Couplings

Size

Between 1 to 12 inches

Material

Aluminium, Brass, Stainless Steel

Pressure

Between 0 to 25 bar

Seal Type

Epdm, Ffkm, Fkm, Nbr

Installed on loading arms or hoses, these couplings feature a controlled breaking point with internal valves that close automatically upon separation. Requiring no external power, they are easily reset on-site by one person. Designed for high flow rates with minimal pressure drop, Industrial Breakaway Couplings enhance safety, reduce downtime, protect equipment, and prevent environmental contamination.

Need something bespoke?

We can engineer to your specific requirements - today.

Delivery available worldwide

A Non-Closure type 4" Stainless Steel Breakaway Coupling with viton seals and PN16 flange connections — A Non-Closure type 4″ Stainless Steel Breakaway Coupling with viton seals and PN16 flange connections

2.5" Safety Breakaway Coupling — 2.5 Safety Breakaway Coupling

2 x 2.5" Stainless Steel Industrial Breakaway with one end being a 2.5" Ansi 150 Flange and the other end having a 3" MBSP Threaded end connection — 2 x 2.5 Stainless Steel Industrial Breakaway with one end being a 2.5 Ansi 150 Flange and the other end having a 3 MBSP Threaded end connection

8" and 2.5" Industrial Breakaway Couplings — 8 and 2.5 Industrial Breakaway Couplings

4 x 2" Industrial Breakaway Couplings — 4 x 2 Industrial Breakaway Couplings

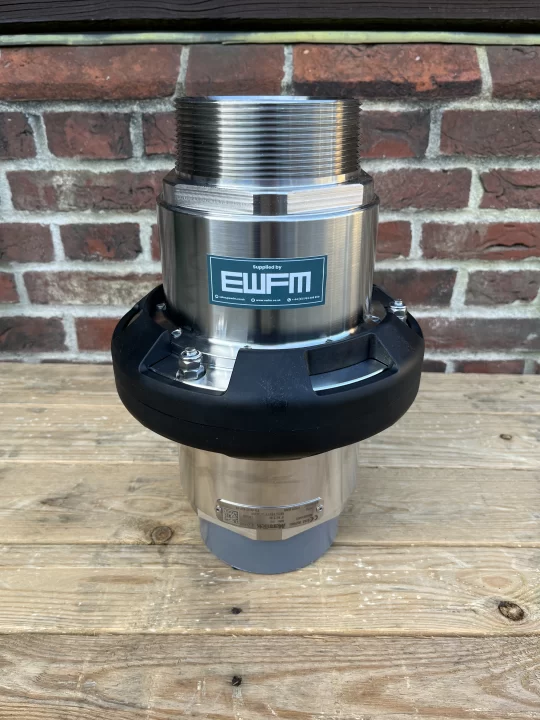

A 4" Stainless Steel Breakaway Coupling with Female BSP on both ends — A 4 Stainless Steel Breakaway Coupling with Female BSP on both ends

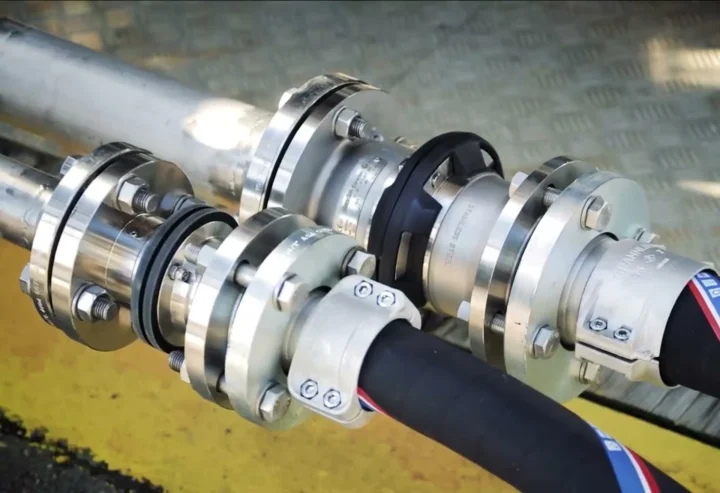

The Industrial Breakaway Coupling in action

Seven 1.5" Industrial Breakaway Couplings with 1.5" FBSP threaded connections on both ends — Seven 1.5 Industrial Breakaway Couplings with 1.5 FBSP threaded connections on both ends

4” Aluminium Industrial Breakaway Coupling with PN10/16 flange connections at both ends, and Viton® seals

12 x 3" Breakaway Couplings with female BSP connections and Viton (R) seals — 12 x 3 Breakaway Couplings with female BSP connections and Viton (R) seals

4 x 2" MannTek Industrial Breakaways we recently delievered to who specialise in environmental clean-up operations. — 4 x 2 MannTek Industrial Breakaways we recently delievered to who specialise in environmental clean-up operations.

Two 2" Cryogenic Breakaway Couplings, featuring 2" ANSI 150 flanged connections on both ends and durable PTFE seals — Two 2 Cryogenic Breakaway Couplings, featuring 2 ANSI 150 flanged connections on both ends and durable PTFE seals

2 x 3" and 2 x 2" Industrial Breakaway Couplings that will be used with one of our Loading Arm Systems — 2 x 3 and 2 x 2 Industrial Breakaway Couplings that will be used with one of our Loading Arm Systems

Description

Industrial Breakaway Couplings are installed on loading arms and hose assemblies, typically where one side is connected to a fixed point. They are designed to prevent pull-away accidents, protect terminal and loading/unloading equipment, and eliminate unintended product release.

Each coupling features a controlled breaking point that separates at a predetermined load. When this occurs, internal valves automatically close on both sides, immediately stopping flow. This action minimises downtime, protects equipment, reduces product loss, and safeguards the environment.

A key advantage of these Couplings is their independent operation via built-in shut-off safety systems, requiring no external power source. They are also simple to reset on site by a single person with minimal tools and training. Additionally, Industrial Breakaway Couplings offer high flow rates with low pressure drop, ensuring efficient operation without compromising safety.

Contact information:

Tel: +44 (0) 1763 248 650

Email: sales@ewfm.co.uk

To keep up to date with news on how we are supporting our customers, our latest blogs and new services available, keep checking in on our website throughout the year and follow us on social media.

Additional Specifications

Available Sizes:
1″ / 2″ / 3″ / 4″ / 5″ / 6″ / 7″ / 8″ / 9″ / 10″/ 11″ / 12″

Materials:
Stainless Steel / Aluminium / Brass

Pressure:
Up to 25 Bar G (Varies depending on material)

End Connections:
Flanged – ANSI or Din
Threaded – BSP or NPT
Victaulic connection

Seals:
FKM / EPDM / FFKM / NBR
