Size
Between 6 to 72 inches
½” to 72”, available in various materials & configurations, with designs suitable for applications across all industries

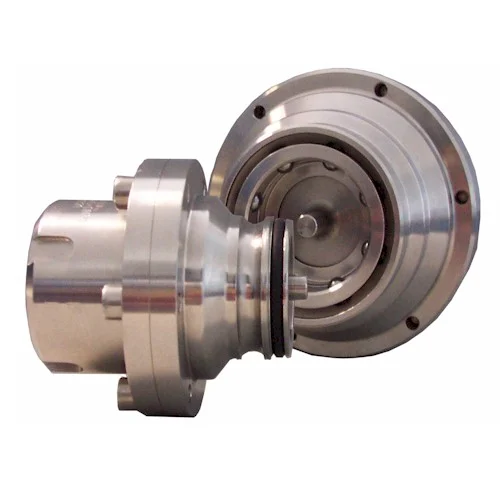

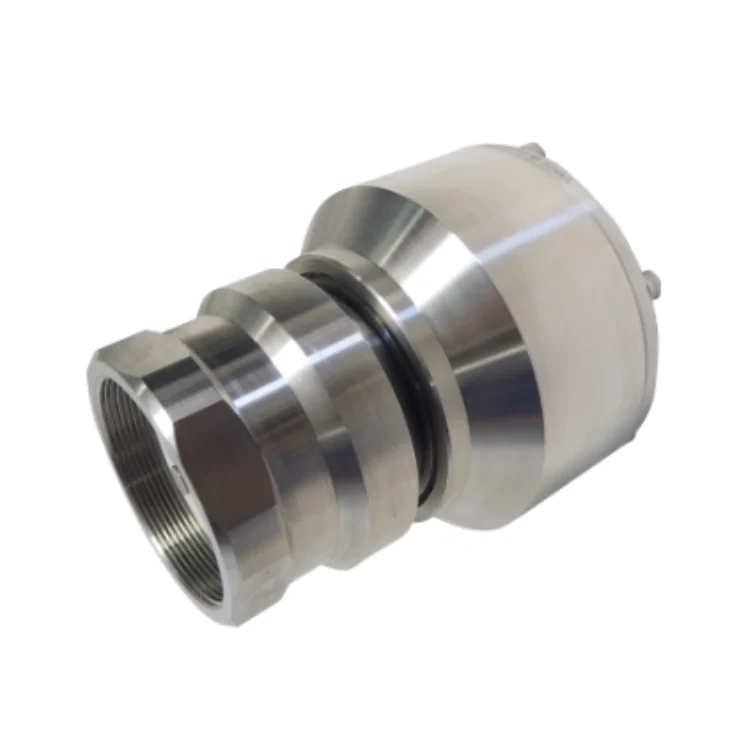

In-Line Breakaway Couplings
In-Line Breakaway Couplings prevent spills and protect hoses, pipelines, and equipment by safely separating under pull-away forces, ensuring minimal product loss and maximum operational safety.
Material
Stainless Steel
Pressure
Between 0 to 25 bar
Seal Type
Chemraz, Ptfe, Viton
These couplings feature spring-loaded non-return valves on both halves and a secure fast-coupling system. Separation is triggered by a pre-set pulling force, independent of line pressure, providing controlled disconnection in either flow direction. Their non-destructive design allows rapid, tool-free reconnection, protecting personnel, equipment, and the environment while maintaining system efficiency during fluid or gas transfer operations.
Description

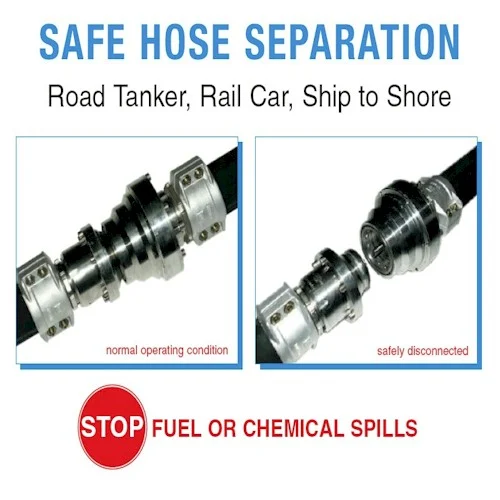

In-Line Breakaway Couplings are designed to protect loading arm stations, hoses, and pipeline installations from fluid or gas spillage caused by unintended pull-away incidents. Common scenarios include tank trucks, rail cars, aircraft, or even drifting ships.
Both halves of the In-Line Breakaway Couplings are fitted with non-return, spring-loaded valves and are connected via a secure fast-coupling system. Separation is triggered by a pulling force applied through the hose, minimising product loss while maximising protection for the system.
The separation force is individually pre-set, ensuring the coupling provides optimal safety for the line. Operating independently of the working pressure, the coupling can function in either direction. Its non-destructive separation design safeguards the environment, operators, and equipment. Additionally, rapid reconnection is simple and does not require tools, spare parts, or shear pins, making it quick and easy to reassemble.
Contact information:
Tel: +44 (0) 1763 248 650
Email: sales@ewfm.co.uk
To keep up to date with news on how we are supporting our customers, our latest blogs and new services available, keep checking in on our website throughout the year and follow us on social media.
Additional Specifications
Available Sizes:
1″ / 2″ / 3″ / 4″ / 5″ / 6″ / 7″ / 8″ / 9″ / 10″/ 11″ / 12″
Materials:
Stainless Steel / Aluminium / Monel / Alloy 20
Pressure:
Up to 25 Bar G
End Connections:
Female Threaded – BSP or NPT
Flanged – ANSI or DIN
Seals:
PTFE / Chemraz / Viton®
