Geodesic Tank Dome

Material

Aluminium

Crafted from high-strength aluminium alloy, the Geodesic Tank Dome meets API 650 Appendix G and EUROCODE requirements. Its fully triangulated structure distributes tension without roof columns or tank-wall reinforcement, offering a lightweight, corrosion-resistant and low-maintenance solution. Designed for easy erection on new builds or retrofits, the Geodesic Tank Dome prevents emissions, protects stored product and ensures long-term operational safety.

Need something bespoke?

We can engineer to your specific requirements - today.

Delivery available worldwide

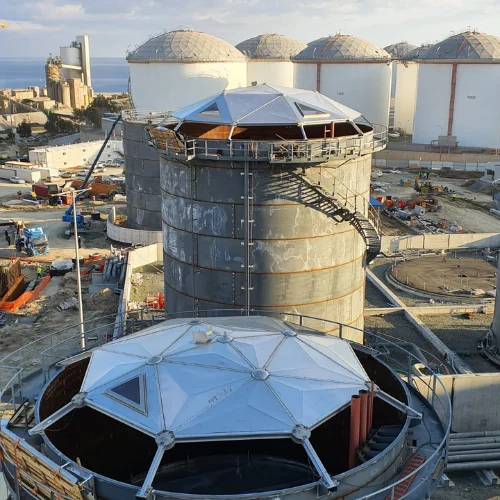

Geodesic Tank Dome situated on top of Storage Tanks

A view of a Geodesic Tank Dome from within a tank

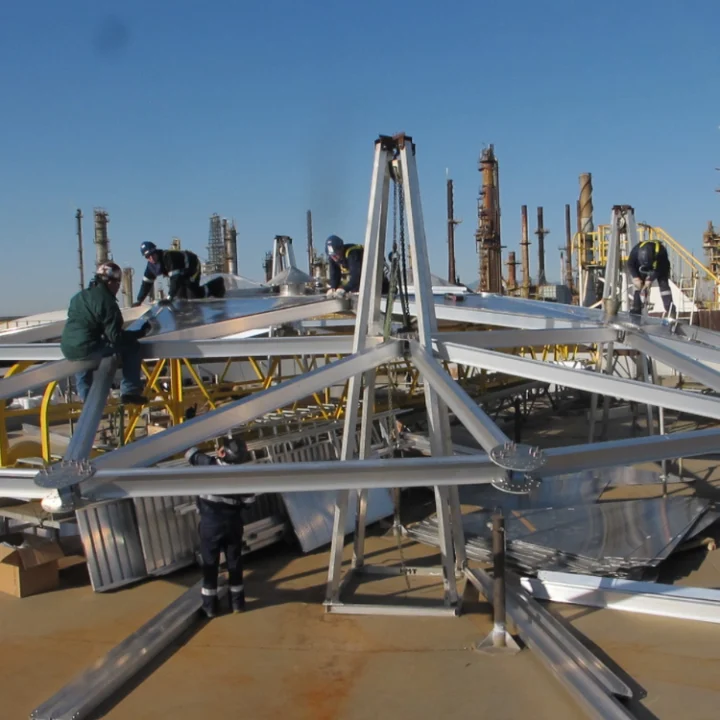

A Geodesic Tank Dome under construction on-site

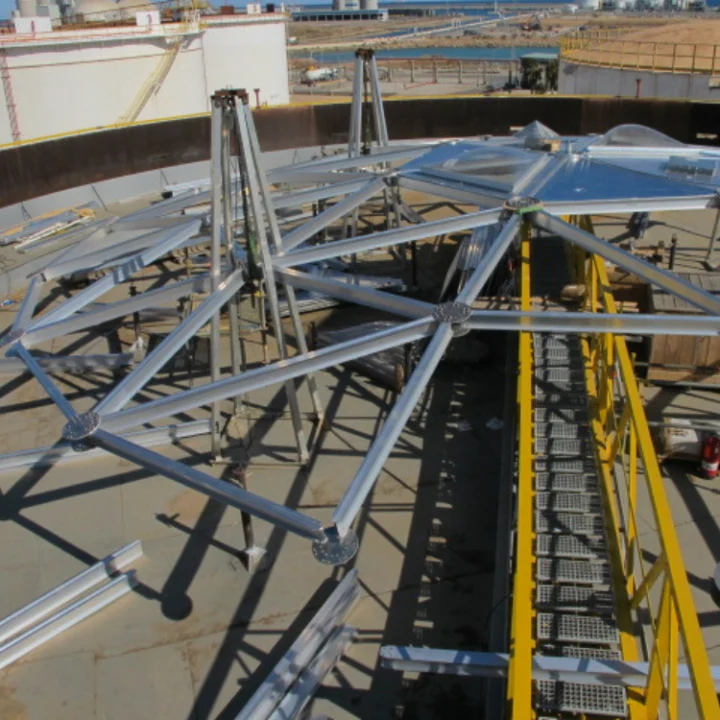

Aerial View of a Geodesic Tank Dome under construction

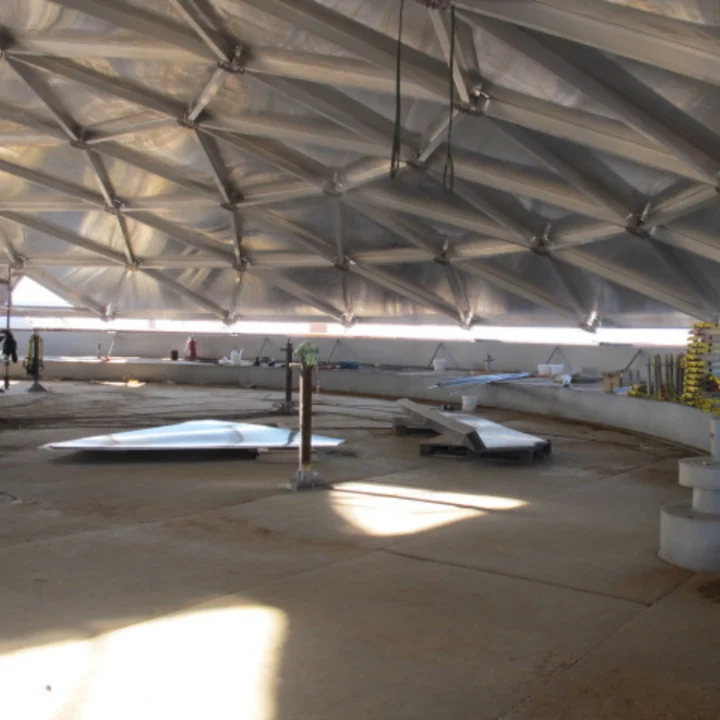

The Underneath of a Geodesic Tank Dome during the construction

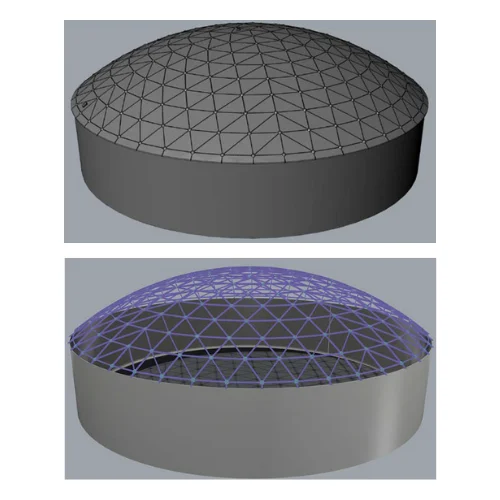

Drawing of the complete Geodesic Tank Dome

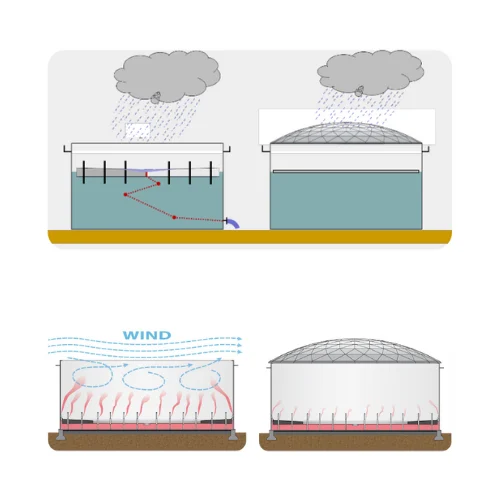

Illustrations of how the Geodesic Tank Dome can protect tanks from weather conditions

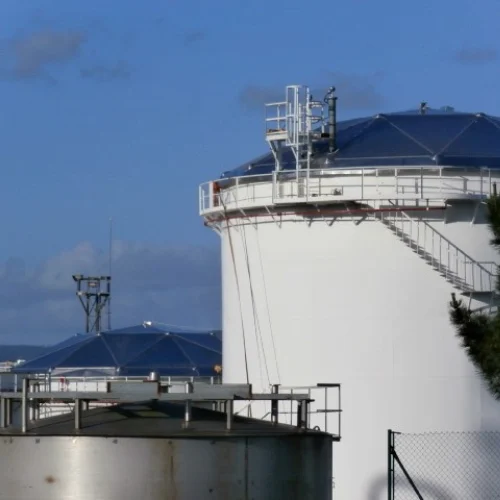

A view from afar of a EWFM dome on a tank

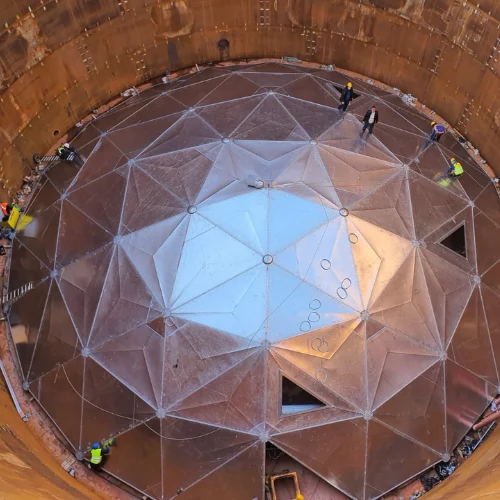

A view from the top of a storage tank looking down on a tank dome in middle of erection

Description

The Geodesic Tank Dome is a cutting-edge aluminium cover and integrated roof system, designed to ensure the utmost safety and environmental protection. With its exceptional engineering, it prevents hazardous emissions from escaping the tank while keeping water out at the same time.

Crafted from a high-strength aluminium alloy, our Geodesic Tank Dome boasts exceptional resistance to corrosion, safeguarding against degradation caused by chemicals, ultraviolet rays, and ozone exposure. Its lightweight and durable design make it virtually maintenance-free, guaranteeing a long-lasting and cost-effective solution for the future.

Compliance is at the core of our design, adhering to API 650 Appendix G requirements and following EUROCODE 1 and 9 with Matrix Methods of Structural Analysis. This fully triangulated structure not only offers self-support but also integral tension distribution, eliminating the need for roof columns or tank wall reinforcement.

Installing the Geodesic Tank Dome is hassle-free, whether for new tank construction or retrofitting an existing tank. You can seamlessly erect it while your tank remains in operation, without any disruptions. Our Geodesic Tank Domes are in use on top of storage tanks across the globe.

Contact information:

Tel: +44 (0) 1763 248 650

Email: sales@ewfm.co.uk

To keep up to date with news on how we are supporting our customers, our latest blogs and new services available, keep checking in on our website throughout the year and follow us on social media.

Additional Specifications

Benefits:
• Lowest cost solution and short-term payback.
• Eliminates rainwater entry and possible product contamination.
• Prevents the possibility of a sunk roof due to rain or snow accumulation.
• Easy to install (plus minimum downtime).
• Maintenance-free structure due to all aluminium construction.
• Strong, durable and corrosion resistant.
• Lightweight design (minimal additional weight to existing foundations).
• Makes all the problems associated with either hose or pipe drains obsolete.
• Protects the existing seals from ultraviolet and other environmental hazards.
• Minimum evaporation losses (no wind related losses).

Accessories:
• Vents
• Skylights
• Hatches
