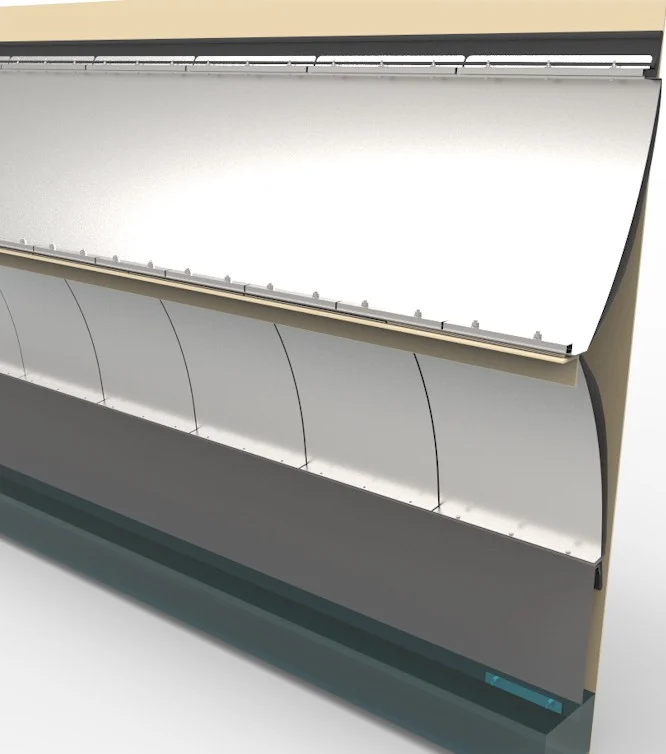

Double Compression Plate Seal (DL5)

Seal Type

Double

Rim Space

Between 120mm to 200mm

Roof Type

External

The Double Compression Plate Seal (DL5) offers reliable top-installed sealing for floating roof tanks without requiring welding. Its skirt extends into the stored product to reduce losses, while the compression plates and wiper maintain continuous contact with the annular space. Custom-fitted to accommodate tank deformations, the seal incorporates low-permeability membranes and external fixings, ensuring safe, effective, and adaptable operation.

View all Storage Tank Equipment and Storage Tank Seals

Need something bespoke?

We can engineer to your specific requirements - today.

Delivery available worldwide

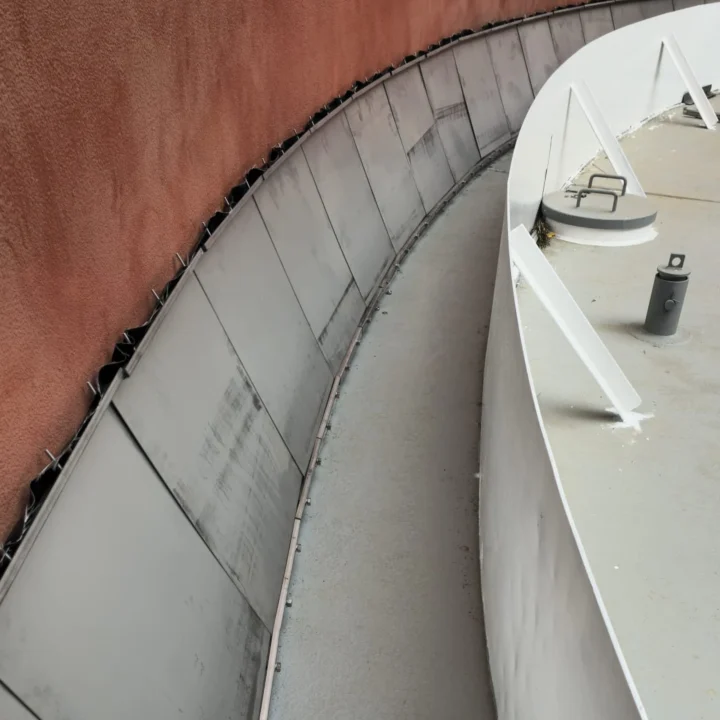

An installed Double Compression Plate Seal DL5 we did, at a major refinery in Nigeria.

Description

The Double Compression Plate Seal (DL5) is based on the standard Compression Plate Seal and is designed for installation from the top of the tank roof. This design allows the seal to be fitted while the tank remains in service, as no welding is required. Each Double Compression Plate is custom made to adapt to tank deformations, ensuring a precise and secure fit.

The Double Compression Plate Seal (DL5) includes a skirt that extends into the stored product to minimise losses. Vapour barrier membranes are typically manufactured from polyurethane-coated nylon fabric with very low vapour permeability, while alternative materials such as PVC Nitrile, PTFE/Teflon, or Fireclose are available to meet specific requirements.

All fixings are positioned on the outside of the seal, leaving the tank shell smooth and reducing the risk of damage when the roof floats above the shell. The seal can be mounted on either a vertical upstand or horizontal angle, with compression plate dimensions adjustable to suit a wide range of nominal rim spaces. The wiper maintains approximately 65 mm of contact with the annular space wall, ensuring effective sealing.
