Size
Between 2 to 12 inches
½” to 72”, available in various materials & configurations, with designs suitable for applications across all industries

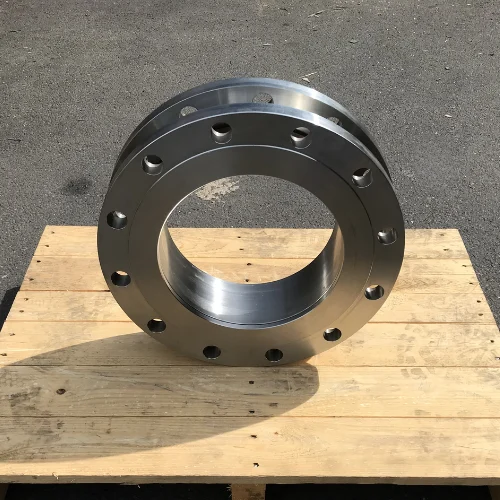

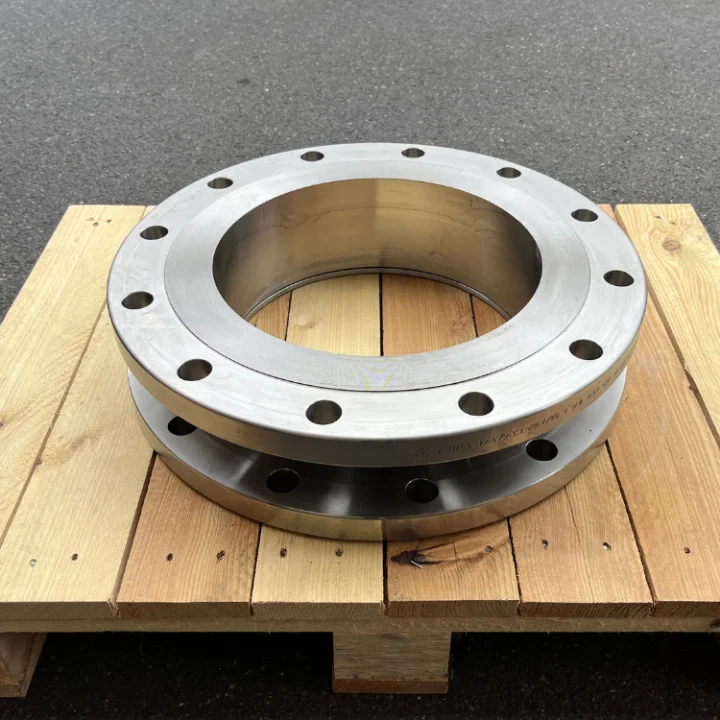

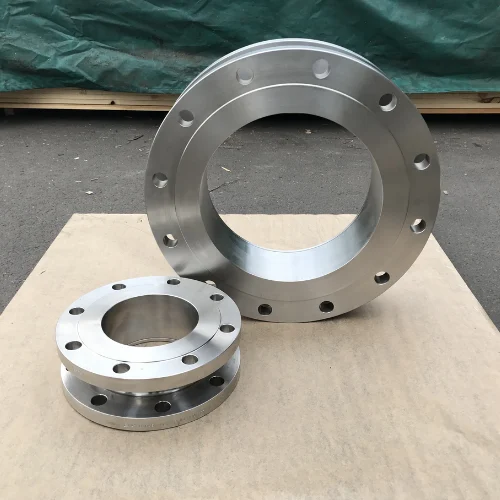

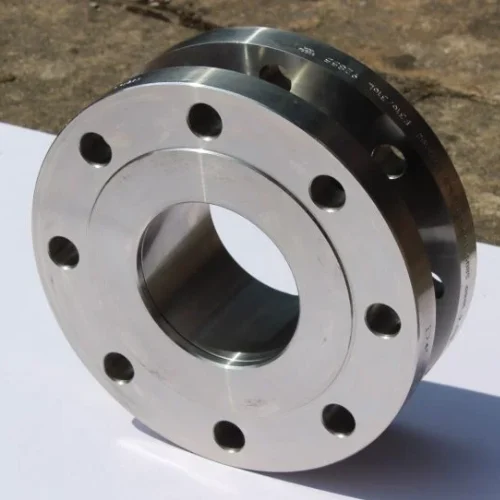

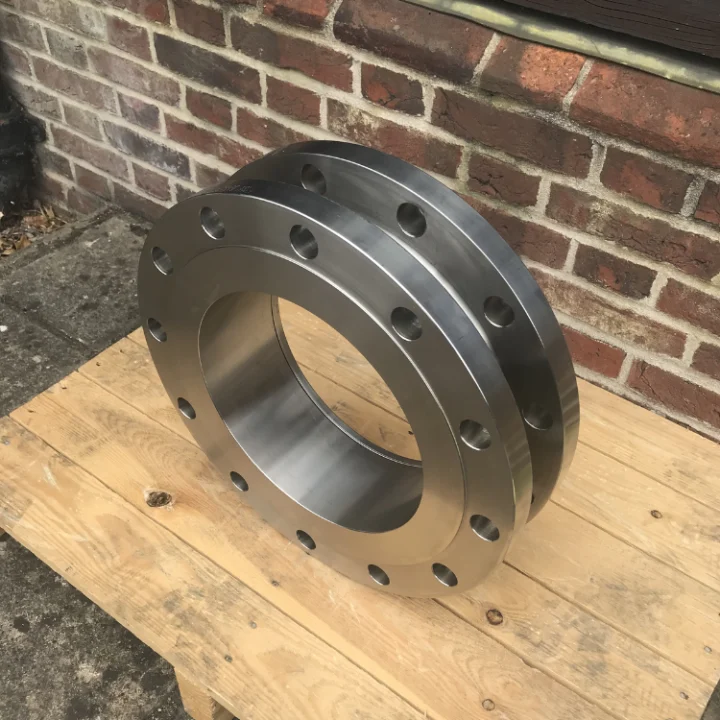

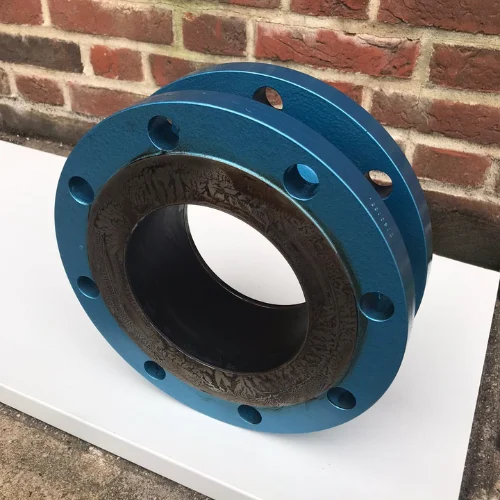

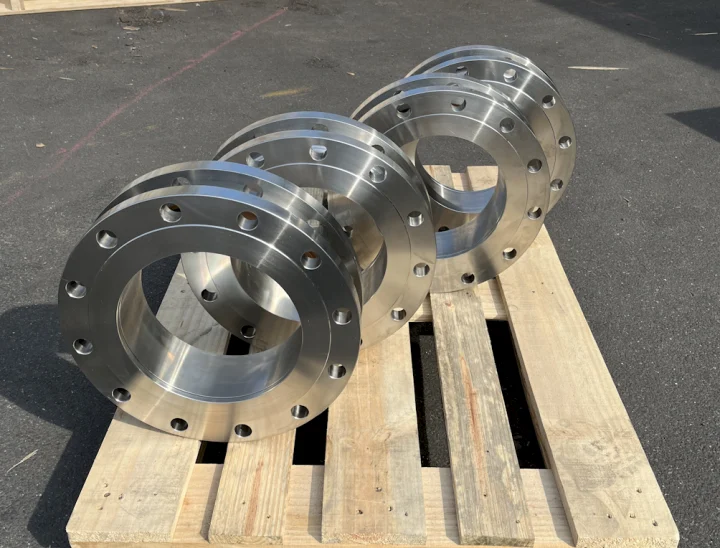

Compact Swivel Joints
Designed for confined spaces, the Compact Swivel offers exceptional strength and smooth performance, featuring ball and roller bearings within a high quality, space saving design.
Material
Carbon Steel, Stainless Steel
Pressure
Between 0 to 10 bar
Temperature
Between -30°c to 220°c or more
Engineered for limited space applications, this Compact Swivel Joint delivers high performance and long-lasting reliability. Its advanced design incorporates ball and roller bearings to provide strength and smooth rotation in a smaller footprint. Compatible with various seal materials, it offers flexibility for different operating conditions while maintaining durability and efficiency in demanding industrial environments.
Description
Compact Swivel Joints are designed for installations where space is restricted, offering one of the most compact swivel solutions available on the market. It is typically manufactured to the industry standard ASME 16.5 150 lb flange dimensions and is available in sizes ranging from 2″ to 12″, with construction options in carbon steel or stainless steel 316L.
EWFM provides a range of seal materials for Compact Swivel Joints, including nitrile, fluorocarbon, and PTFE, with additional options available upon request to suit specific media or operational conditions. The joint incorporates a high-quality design with both ball and roller bearings, delivering exceptional strength and reliability despite its compact size. This combination of robust construction and space-saving design makes the Compact Swivel ideal for applications requiring durability in confined areas.
Contact information:
Tel: +44 (0) 1763 248 650
Email: sales@ewfm.co.uk
To keep up to date with news on how we are supporting our customers, our latest blogs and new services available, keep checking in on our website throughout the year and follow us on social media.
Additional Specifications
Available sizes:
2″ / 3″ / 4″ / 5″ / 6″/ 8″ / 10″ / 12″
Materials:
Carbon Steel / Stainless Steel
Pressure:
Up to 10 Bar G (150 PSI)
End Connections:
Flanged – PN / DIN / ANSI
Threaded – BSP / NPT / SAE / JIC / RJT
Weld end – Schedule 10 / 40 / 80
Specials – Tri Clamp / Hammer Lug Union
Seals:
Nitrile / Fluorocarbon / PTFE
