Model 2361 Vacuum Breaker

Size

Between 0.75 to 1 inches

Material

Aluminium, Brass

Pressure

Between 0 to 10 bar

Seal Type

Viton

Constructed from NI-plated brass or aluminium, the Model 2361 Vacuum Breaker is suited for hydrocarbon applications. It features a ¾”–1” NPT bottom connection, a VITON® seal, and a 10 Bar G design pressure. The consistent internal components provide reliable, chemical-resistant sealing and full drainage from valve to arm end, enhancing safety and efficiency during fluid transfer operations.

Need something bespoke?

We can engineer to your specific requirements - today.

Delivery available worldwide

Image of a brass Model 2361 Vacuum Breaker

Image of a Model 2361 Vacuum Breaker incorporated into pipework

Description

The Model 2361 Vacuum Breaker is designed to allow complete drainage of product from the valve to the end of the loading arm, ensuring efficient and safe unloading. It is constructed from NI-plated brass or aluminium, making it best suited for hydrocarbon applications due to its material compatibility and durability.

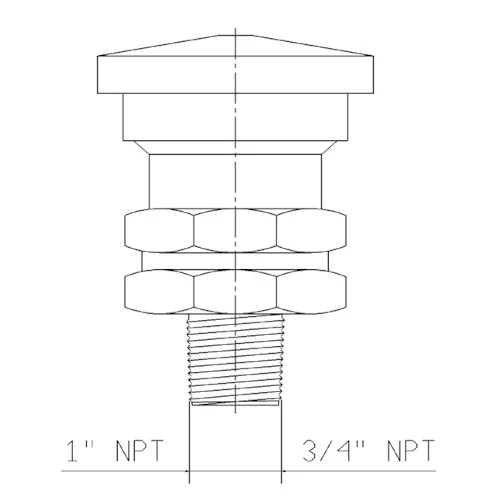

The vacuum breaker features a ¾” to 1” NPT bottom connection. This sizing refers only to the connection, while the cap, seal disc, main body, and spring remain consistent across all models. The seal is made from VITON®, providing excellent chemical resistance and a reliable seal under normal operating conditions. The Model 2361 Vacuum Breaker is rated for a design pressure of 10 Bar G, ensuring dependable performance in a variety of industrial loading operations.

Contact information:

Tel: +44 (0) 1763 248 650

Email: sales@ewfm.co.uk

To keep up to date with news on how we are supporting our customers, our latest blogs and new services available, keep checking in on our website throughout the year and follow us on social media.

Additional Specifications

Diameter:
0.75” – 1” NPT thread

Material:
Brass / Aluminium

Operating Conditions:
Design Pressure: 10.0 Bar G

Vacuum for opening:
20 mbar

Seal Material:
VITON®
