Swivel Joint 2174 Series

Size

Between 1 to 6 inches

Material

Carbon Steel

Pressure

Vacuum, Between 0 to 50 bar

Temperature

Between -30°c to 220°c or more

Specifications are for guidance only and may vary with material and seal choice. Please confirm all operating parameters with the EWFM team before ordering.

The 2174 Series Swivel Joint is designed for strength and reliability, featuring a carbon steel construction and precision-engineered double-row ball bearings for smooth, long-lasting performance. It reduces pipe stress and fatigue and is commonly used with hydrocarbon and LPG loading arms, with optional heavy-duty versions available for increased load requirements.

Need something bespoke?

We can engineer to your specific requirements - today.

Delivery available worldwide

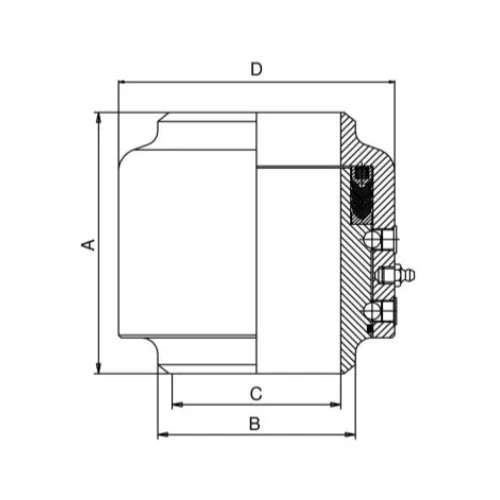

Model 2714 Swivel Joint Dimensions — The dimensions of a Model 2714 Swivel Joint

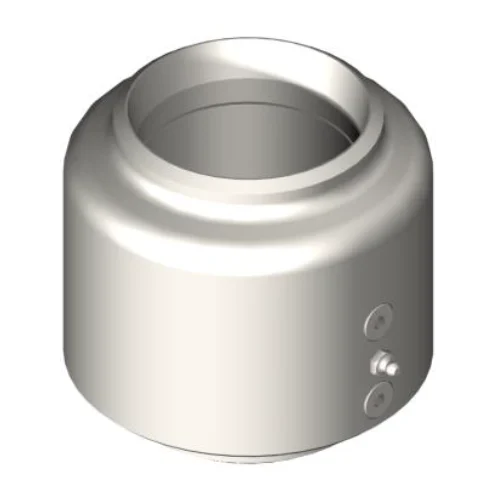

Full Image of the Model 2174 Swivel Joint — A image of the outer body of the Model 2174 Swivel Joint

Nine 4" carbon steel Model 2174 Swivel Joints engineered into pipework — Nine 4 carbon steel Model 2174 Swivel Joints engineered into pipework

4" Hardened Carbon Steel Model 2174 Swivel Joint — A 4 Hardened Carbon Steel Model 2174 Swivel Joint

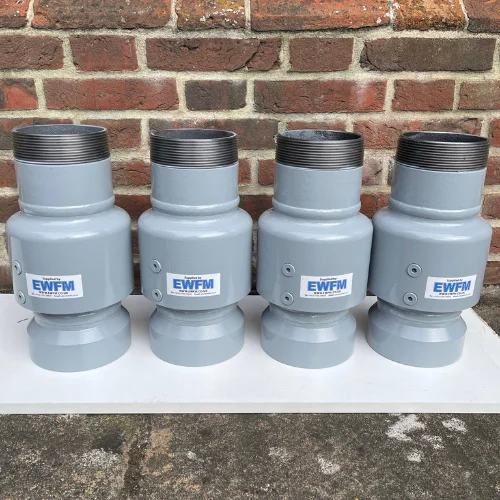

4 x 4" Model 2174 Swivel Joints — A picture of 4 x 4 Model 2174 Swivel Joints

3 x 4" Style 20 Model 2174 Swivel Joint — An image of 3 Style 20 Model 2174 Swivel Joint

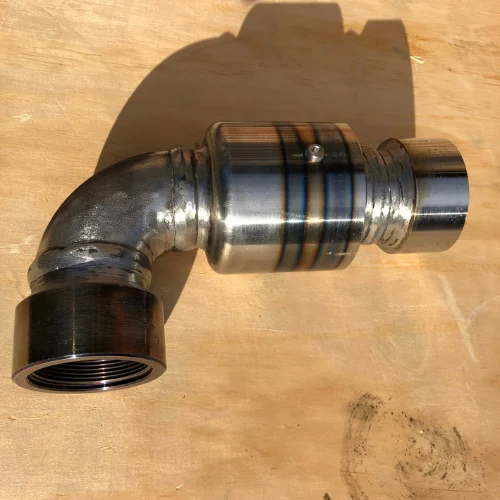

2" Style 30 Hardened Carbon Steel Model 2174 Swivel Joint — A 2 Style 30 Hardened Carbon Steel Model 2174 Swivel Joint

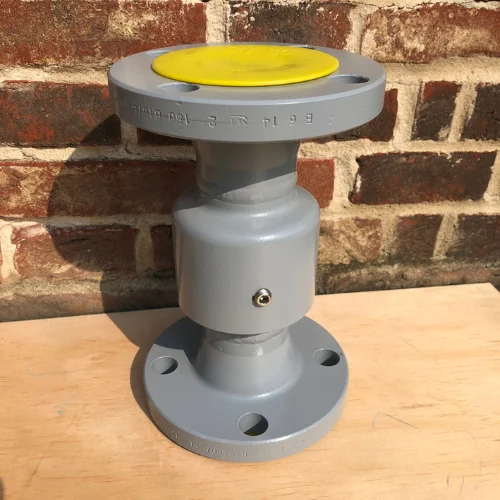

2" Model 2174 with 100 X-ray of welds — 2 Model 2174 with 100 X-ray of welds

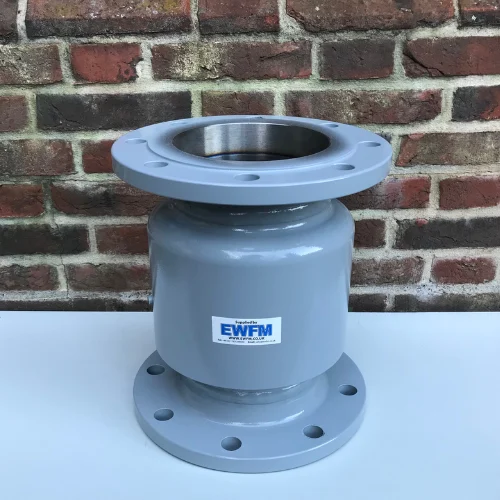

A 6" Model 2174 Swivel Joint made to a style 20 configuration — A 6 Model 2174 Swivel Joint made to a style 20 configuration

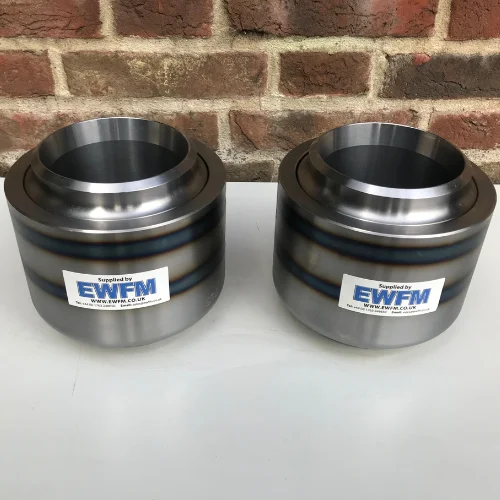

2 x 4" hardened carbon steel Model 2174 Swivel Joints — 2 x 4 hardened carbon steel Model 2174 Swivel Joints

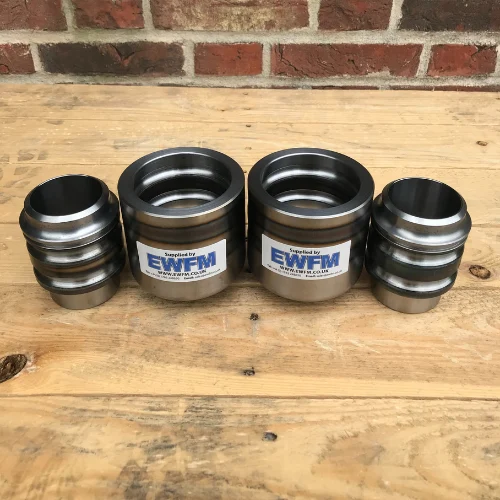

2 disassembled x 2" Carbon Steel 2174 Swivel Joints made to a style 20 — 2 disassembled x 2 Carbon Steel 2174 Swivel Joints made to a style 20

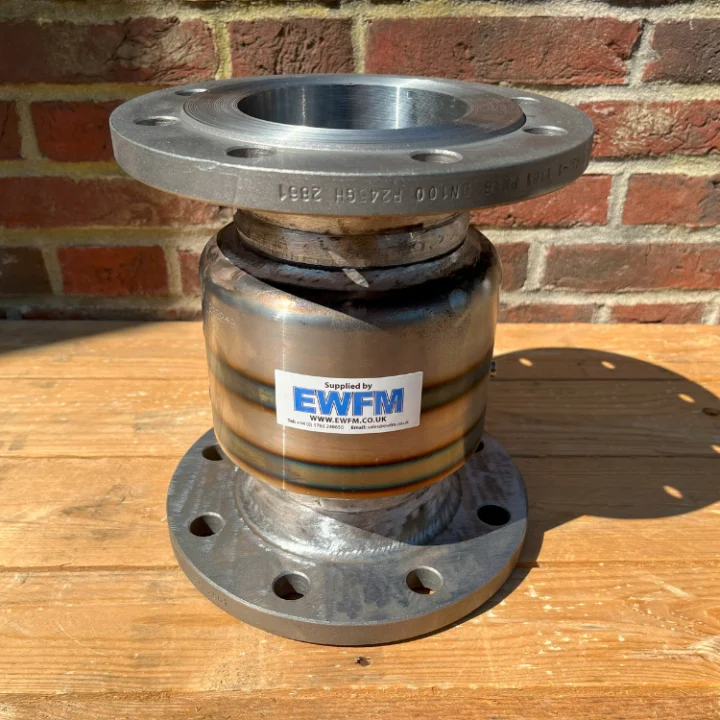

A 4” Model 2174 Swivel Joint crafted from carbon steel and fitted with PN16 flanges

Description

The Swivel Joint 2174 Series is a reliable solution within our standard swivel joint range, engineered to relieve pipe stress and fatigue in industrial applications. Constructed from carbon steel, the 2174 Series features a double row of ball bearings on hardened and ground tracks with Nitrile or Viton seals, providing smooth operation and long-lasting performance. Its precision hardening process ensures durability under significant loads, making it ideal for heavy-duty applications.

This Swivel Joint is commonly used with our hydrocarbon and LPG loading arms, offering a robust and secure connection for safe and efficient fluid transfer. The 2174 Series is available either assembled for flanged connections or disassembled for weld-end installations, providing flexibility for various system requirements.

For applications requiring enhanced load capacity, we also offer a heavy-duty version of the Swivel Joint 2174 Series, designed to meet more demanding operational conditions (full data sheet available below).

Contact information:

Tel: +44 (0) 1763 248 650

Email: sales@ewfm.co.uk

To keep up to date with news on how we are supporting our customers, our latest blogs and new services available, keep checking in on our website throughout the year and follow us on social media.

Additional Specifications

Sizes:
1″ / 1.5″ / 2″ / 2.5″ / 3″ / 4″ / 6″

Materials:
Carbon Steel

Pressure:
Up to 50 Bar G

End Connections:
