Size
Between 6 to 10 inches
½” to 72”, available in various materials & configurations, with designs suitable for applications across all industries

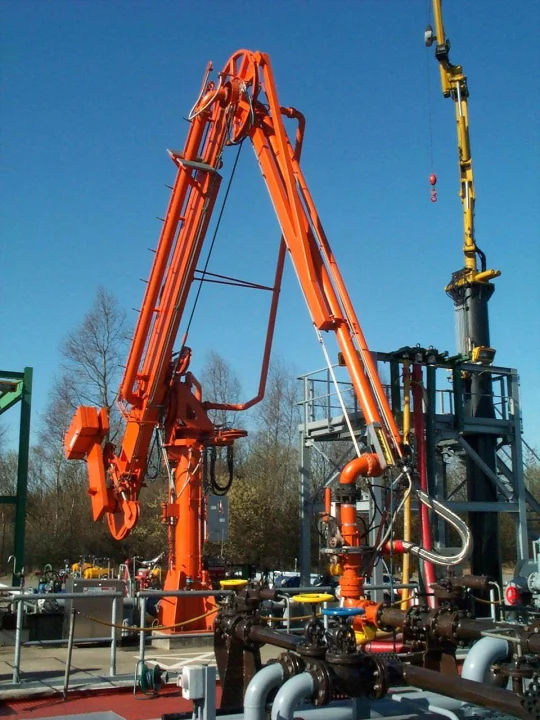

Minerva Marine Loading Arm (Semi Self Supporting)
The Minerva Marine Loading Arm is a self-supporting cable pantograph system that provides a safe, balanced, and efficient transfer of liquids and gases to and from ship tankers.
Material
Carbon Steel, Stainless Steel
Equipped with a low-maintenance, lightweight pantograph system, the Minerva Marine Loading Arm balances inboard and outboard arms for smooth operation. An oversized 3-2ST Swivel Joint absorbs dynamic loading forces, while replaceable seals allow maintenance without disassembly. Suitable for aggressive chemicals, extreme temperatures, and varied pressures, it offers wide operational coverage with minimal dead weight and reliable marine performance.
Description

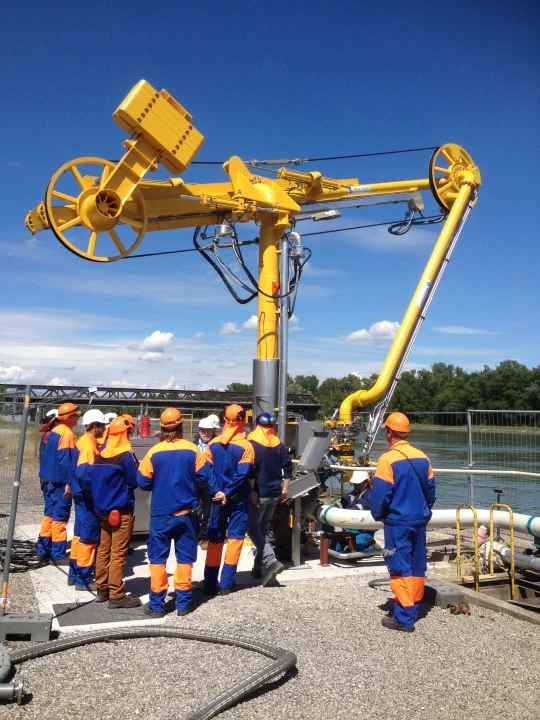

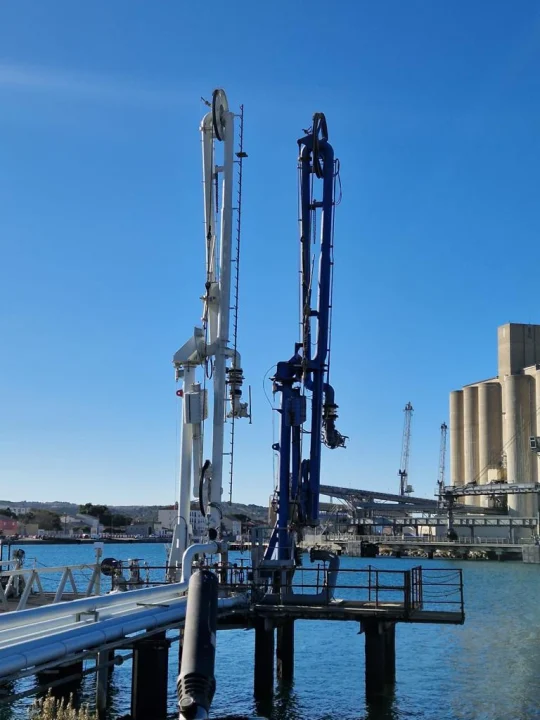

The Minerva Marine Loading Arm is designed for the safe transfer of liquids and gases to and from ocean-going or inland waterway tankers. Its self-supporting construction is balanced using a cable pantograph system with two counterweights.
The low-maintenance, lightweight pantograph system balances both inboard and outboard arms for smooth operation. An over-dimensioned Model 3-2ST Swivel Joint supports dynamic forces during loading. The seals are easily replaceable without dismantling the arm or using additional equipment.
The Minerva Marine Loading Arm covers a wide operating range while limiting excessive dead weight. It is suitable for aggressive chemicals, extreme temperatures, and varied pressure applications.
Contact information:
Tel: +44 (0) 1763 248 650
Email: sales@ewfm.co.uk
To keep up to date with news on how we are supporting our customers, our latest blogs and new services available, keep checking in on our website throughout the year and follow us on social media.
Additional Specifications
Available Sizes:
6” (DN150) – 10” (DN250)
Materials: Product Pipe
Stainless Steel / Carbon Steel
Other Options:
Hydraulic operation
Manual/hydraulic QCDC (Quick Connect-Disconnect Coupler)
Manual/hydraulic shut off valve
Insulated flange
Vacuum breaker
Purge/drain
ERC (Emergency Release Coupler)
Piggyback vapour return line
Model 4-2ST Swivel joint
Tracing and/or insulation
Others requests can be considered
