Large Bore Swivel Joints

Large Bore Swivel Joints are specifically designed for handling wide hoses or large-diameter pipework, providing smooth and reliable rotation in demanding applications. Unlike our standard swivel joint range, Large Bore Swivels are available in sizes from 10” and upwards, with the ability to be custom-manufactured up to a 72” internal bore to meet specific project requirements. These swivels can be configured with one or two rows of ball bearings, allowing for 360° rotation under load without restriction.

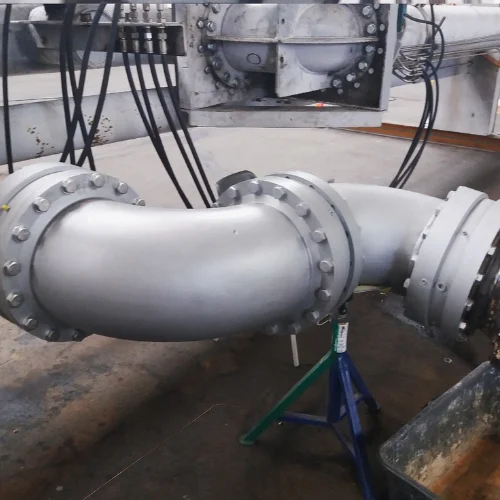

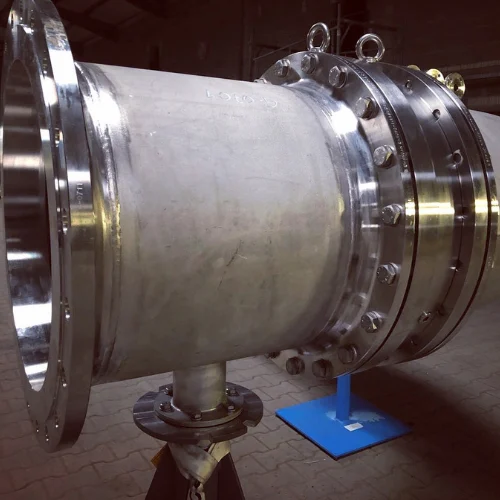

Large Bore Swivel Joints are typically used in large-scale articulated pipework, commonly found in onshore and offshore oil & gas operations. They are also widely employed in systems incorporating Floating Suction Units, Hose Reels, and Marine Loading Arms, providing reliable, long-lasting performance where heavy-duty rotation and fluid handling are essential.

Available sizes:

8″ up to 72″

Materials:

Carbon Steel / Stainless Steel / Duplex Steel

Pressure:

Up to 1,200 Bar G

Styles:

20 / 30 / 40 / 50 / 60 / 70 / 80 / 10

End Connections:

Flanged – PN / DIN / ANSI
Threaded – BSP / NPT / SAE / JIC / RJT
Weld end – Schedule 10 / 40 / 80
Specials – Tri Clamp / Hammer Lug Union

Seals:

Axial PTFE Groove
