Size
Between 0.75 to 72 inches
½” to 72”, available in various materials & configurations, with designs suitable for applications across all industries

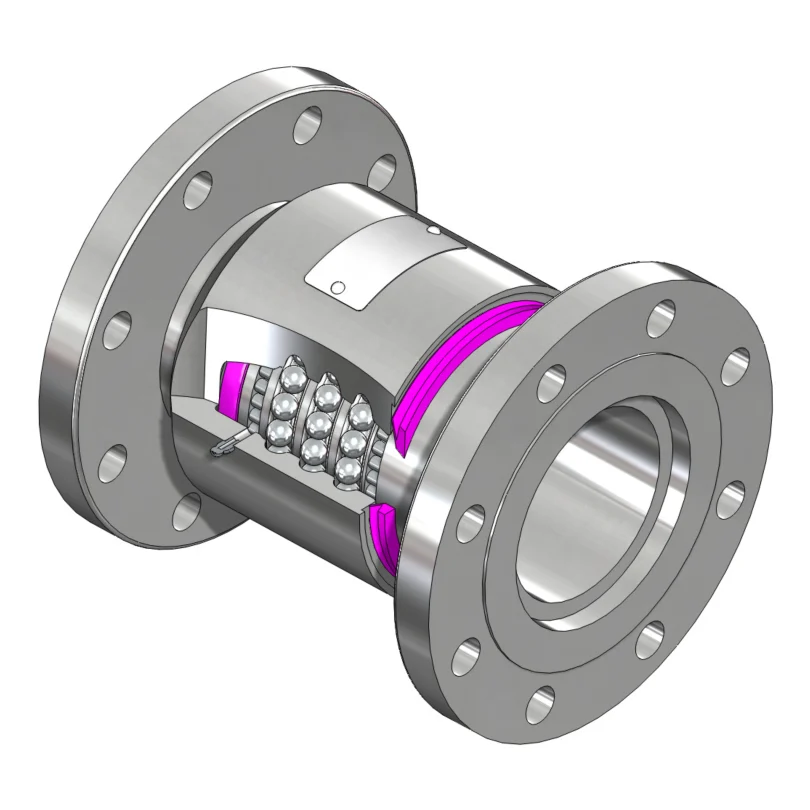

Engineered Swivel Joints
Engineered Swivel Joints enable smooth rotation in pipework, handling high loads and extreme conditions with versatile materials and custom features for industrial applications.
Material
Aluminium, Carbon Steel, Duplex Steel, Hastelloy, Ptfe Lined, Stainless Steel, Super Duplex Steel, Other
Pressure
Vacuum, Between 0 to 51 bar
Temperature
Less than -201°c or up to 220°c or more
Designed for extreme conditions, Engineered Swivel Joints support high loads and temperatures across various industries. Available in multiple materials and custom configurations, they offer features like steam jackets and leak detection, ensuring durability and adaptability for demanding applications such as heavy-duty pipework and specialised fluid transfer systems.
Description
Engineered Swivel Joints are designed to perform reliably under high loads, pressures, and extreme temperatures. Available in sizes ranging from ¾” up to 72” bore, these swivels can be constructed from stainless steel, carbon steel, duplex steel, and other specialist or exotic materials on request, providing solutions for even the most demanding industrial applications.
The Engineered Swivel Joint offers a wide range of customisation options to meet diverse operational requirements across multiple industries. It can be manufactured in pipe schedule sizes up to XXS and assembled in all standard EWFM styles. Optional features include steam jackets, leak detection ports, PTFE lining, and plated bores, allowing the swivel to be tailored precisely for specific processes.
To ensure long-term performance and reliability, EWFM also provides factory refurbishment services, offering ongoing maintenance and support throughout the life of the Engineered Swivel Joints. This combination of robust engineering, customisation, and aftercare makes the Engineered Swivel Joint ideal for demanding industrial and process applications.
Contact information:
Tel: +44 (0) 1763 248 650
Email: sales@ewfm.co.uk
To keep up to date with news on how we are supporting our customers, our latest blogs and new services available, keep checking in on our website throughout the year and follow us on social media.
Additional Specifications
Available sizes:
3/4″ up to 72″
Materials:
Carbon Steel / Low Temperature Steel / Stainless Steels / Duplex / Super Duplex / Monel / Hastelloy / Inconel
Pressure:
In excess of 1379 Bar G
Styles:
20 / 30 / 40 / 50 / 60 / 70 / 80 / 10
End Connections:

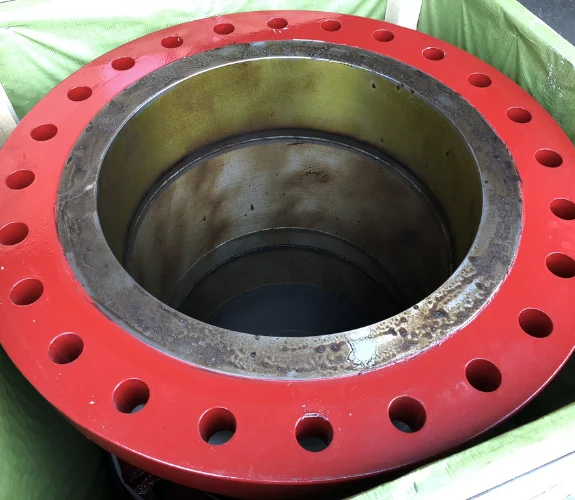

- Flanged – ANSI / RTJ / DIN / API / JIS / ISO
- Threaded – NPT / BSP
- Weld end – Schedule 10 / 40 / 80

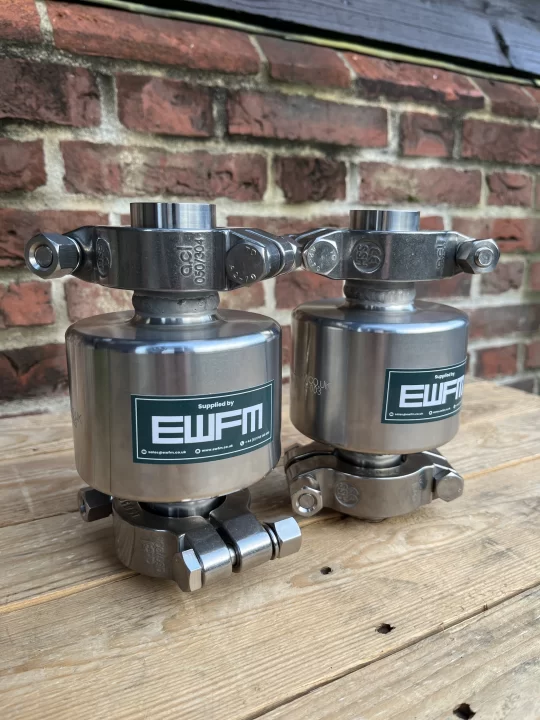

- Specials – Tri Clamp / Hammer Lug Union / Greylock Connectors / Hubs
Seals:
- PTFE Compound
- Others available on request
