Dry Disconnect Couplings

Size

Between 1 to 8 inches

Material

Aluminium, Brass, Gun Metal, Hastelloy, Stainless Steel, Other

Pressure

Vacuum, Between 0 to 25 bar

Temperature

Between -30°c to 111°c or more

Dry Disconnect Couplings are designed for safe, fast, and spill-free transfer of liquids. With a simple push and turn, these couplings automatically open the valve, creating a secure connection that minimises leaks, reduces downtime, and protects both operators and the environment. They’re ideal for demanding industries such as the hydrocarbon, chemical, and petrochemical where precision and safety are critical.

Need something bespoke?

We can engineer to your specific requirements - today.

Delivery available worldwide

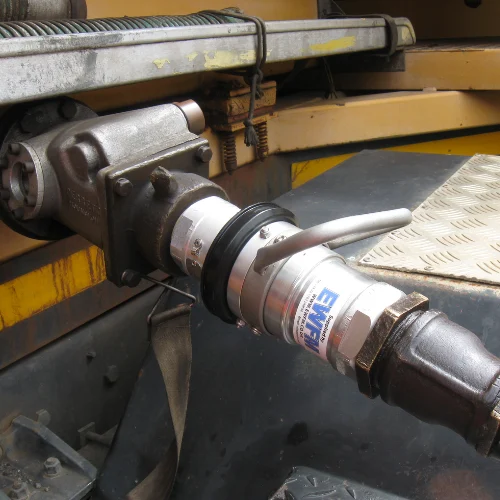

A 2" Dry Disconnect Coupling connected to a tanker — A 2 Dry Disconnect Coupling connected to a tanker

Customer Photo consisting of Two of our 6" Stainless Steel Swivel Joints, 6" Stainless Steel Braided Hose and a Manntek Dry Disconnect Coupling. — Customer Photo consisting of Two of our 6 Stainless Steel Swivel Joints, 6 Stainless Steel Braided Hose and a Manntek Dry Disconnect Coupling.

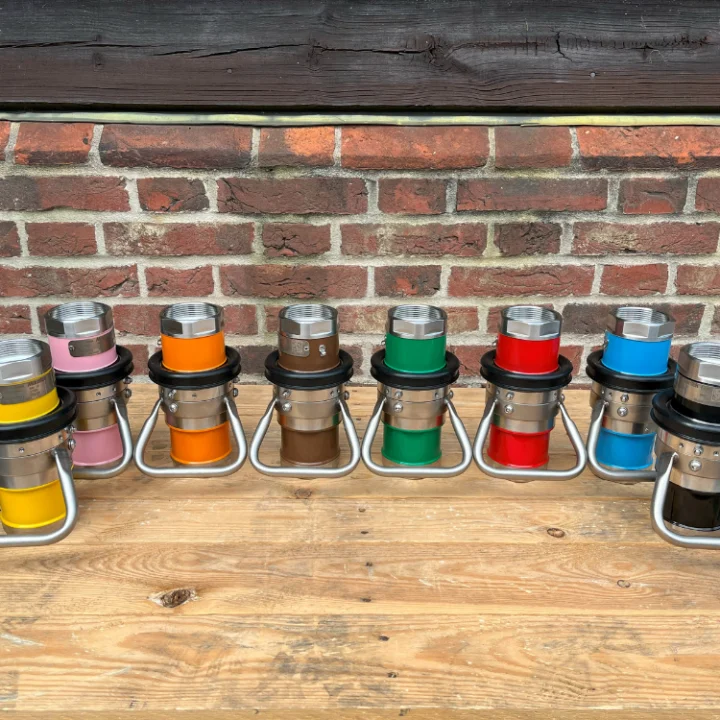

8 x 2 inch Dry Disconnect Couplings with colour-coded exteriors and Selectivity

2 x Dry Disconnect Hose Units with handles

10 x 2.5" Tank Units and 6 x 2.5" Hose Units — 10 x 2.5 Tank Units and 6 x 2.5 Hose Units

2 x 3" Gunmetal Hose Units with 3" Female BSP Threaded Connections. — 2 x 3 Gunmetal Hose Units with 3 Female BSP Threaded Connections.

2" x 4" Stainless Steel MannTek Hose Units with Full-circle round handles, ANSI 150 Flange Connection and Kalrez® Seals — 2 x 4 Stainless Steel MannTek Hose Units with Full-circle round handles, ANSI 150 Flange Connection and Kalrez® Seals

220 x 2" Aluminium Tank Units that will be put to work handling various oils in demanding industrial applications. — 220 x 2 Aluminium Tank Units that will be put to work handling various oils in demanding industrial applications.

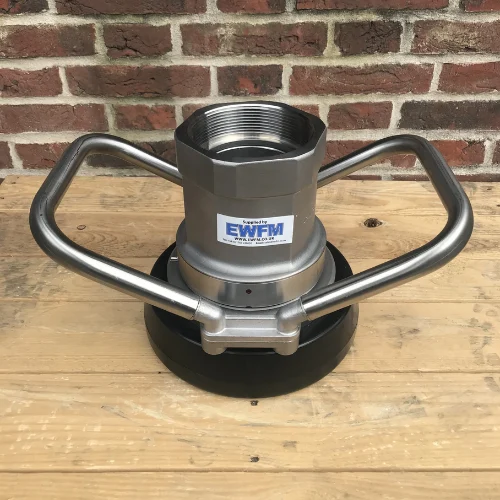

A 4" Stainless Steel Hose Unit — A 4 Stainless Steel Hose Unit

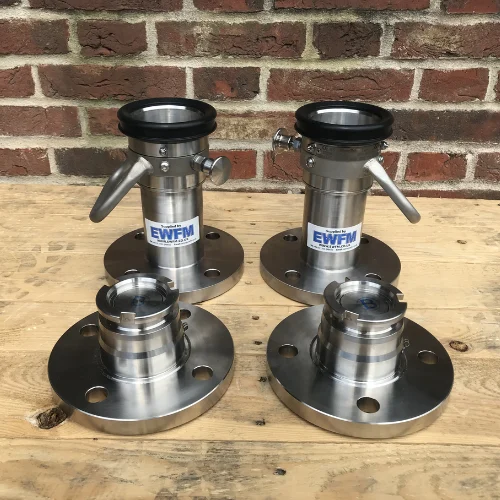

2 x 2" Tank and Hose Units — 2 x 2 Tank and Hose Units

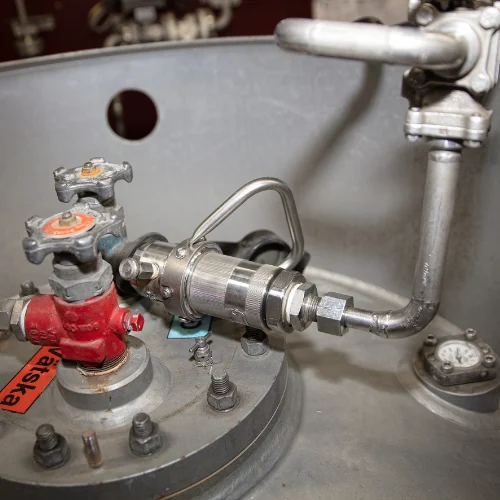

A Dry Disconnect Hose Unit connected to a barrel

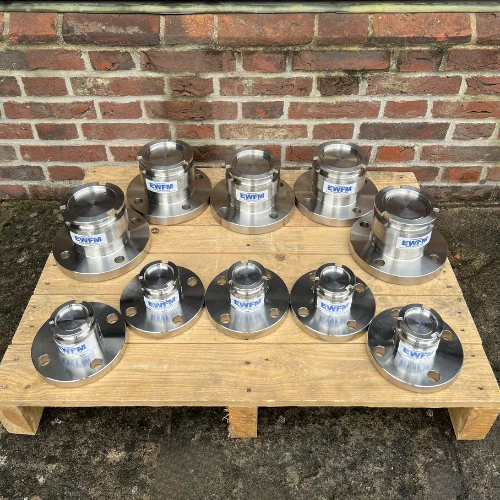

5 x 2" Tank Units and 5 x 3" Tank Units — 5 x 2 Tank Units and 5 x 3 Tank Units

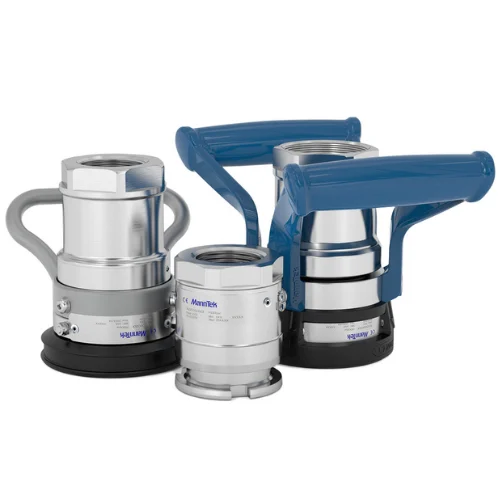

Dry Disconnect Coupling - New 2.0 Design

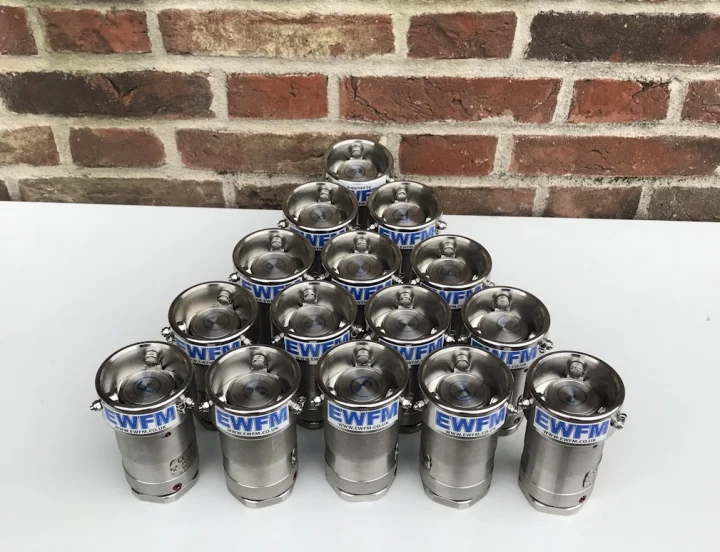

16 3/4" Dry Disconnect Couplings — 16 x 3/4″ Dry Disconnect Couplings

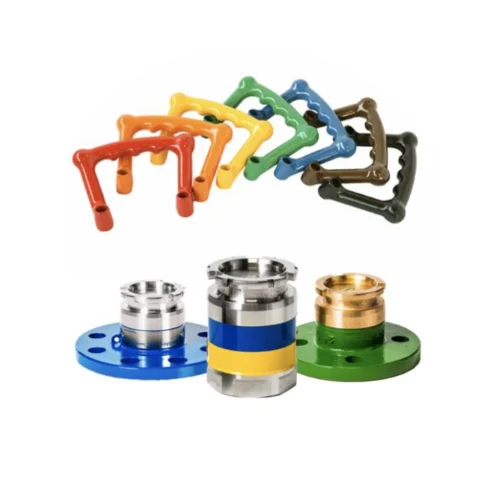

Manntek Couplings have the ability to be colour coded — Colour coding

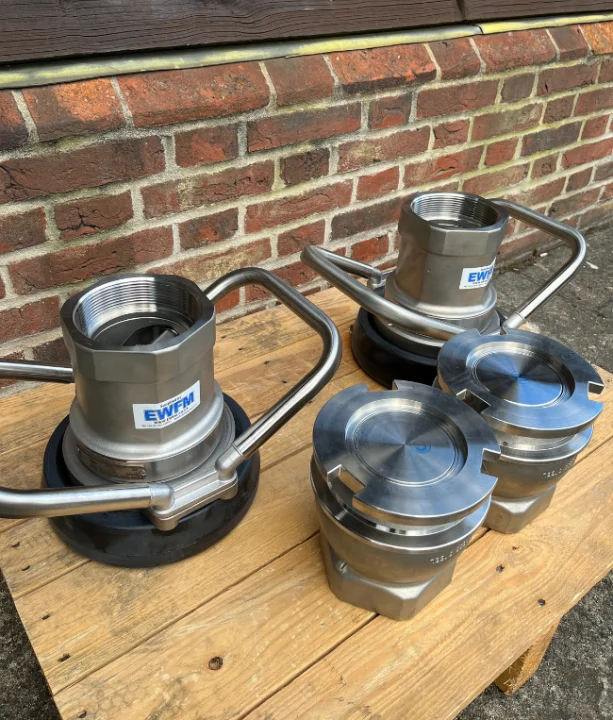

4 x 4" Manntek Dry Disconnect Couplings — 4 x 4 Manntek Dry Disconnect Couplings

Twenty 2.5" Stainless Steel Dry Disconnect Couplings — Twenty 2.5 Stainless Steel Dry Disconnect Couplings

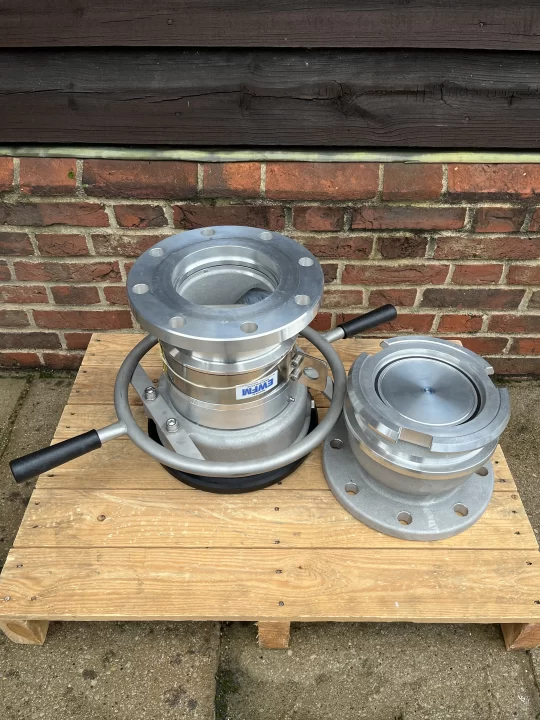

6” Tank Unit and a 6” Hose Unit, manufactured in aluminium and supplied with PN10/1 Flanges and Viton Seals.

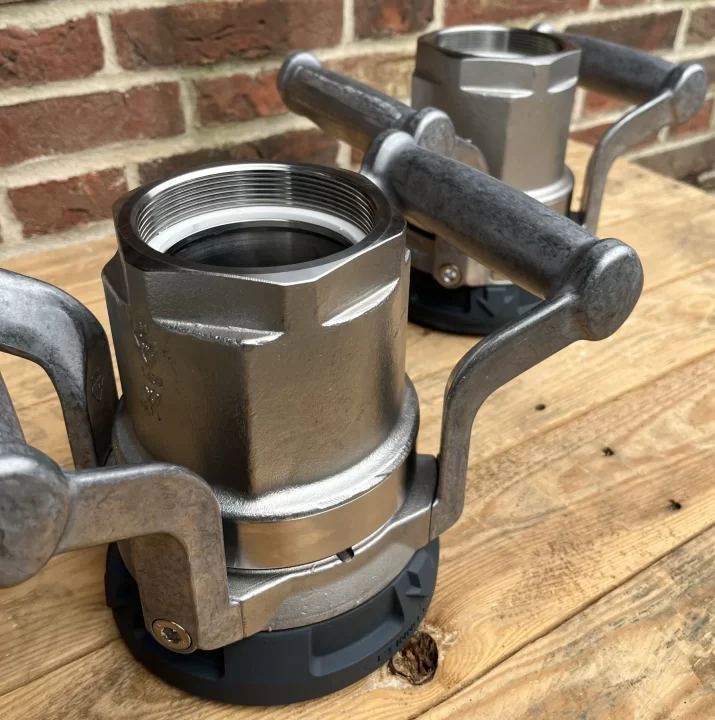

2 x 3" MannTek Hose Units with non-coated handles. — 2 x 3 MannTek Hose Units with non-coated handles.

Description

Dry Disconnect Couplings

Dry Disconnect Couplings are a part of EWFM’s extensive range of couplers. These ensure a spill free, quick and dry connection & disconnection of hoses and pipelines. These have been used in a variety of industries where spillage needs to be minimised. Generally, the products that are pushed through couplings are petroleum, chemical or gas.

Aluminium, brass, stainless steel, hastelloy and PEEK are the main materials that our Couplings are available in, however, if you require a more exotic material, they are available on request. Dependant on what material you go for, they all have different working, test and burst pressures.

Contact information:

Tel: +44 (0) 1763 248 650

Email: sales@ewfm.co.uk

To keep up to date with news on how we are supporting our customers, our latest blogs and new services available, keep checking in on our website throughout the year and follow us on social media.

Additional Specifications

Available Size:
0.75” / 1” / 2” / 3” / 4” / 5” / 6” / 7” / 8”

Material:

Aluminium / Brass / Gun Metal / Stainless Steel / Hastelloy / PEEK / Titanium

Others available on request

Pressure:
Up to 25 BAR (Five times the safety factor)

Media:
Petroleum / Chemical / Gas

Connections:
Threaded (BSP & NPT)

Flanged (ANSI, EN, TW, TTMA, JIS, TRICLAMP)

Others available on request

Seals:
FKM / EPDM / NBR / Chemraz® / Kalrez®
