Home » Products » Land Loading Arms & Unloading Arms » Loading Arm Valves » API Vapour Couplers

API Vapour Couplers

API Vapour Couplers enable safe and efficient bottom-loading of tanker vapours, connecting securely to male adaptors while preventing leaks, ensuring reliable, long-lasting performance.

Size

4 inches

Material

Aluminium

Pressure

Between 0 to 2 bar

Temperature

Between -30°c to 90°c

Manufactured to API RP1004 standards, the 4” API Vapour Coupler connects securely to a tanker’s male vapour adaptor, ensuring safe and efficient vapour handling. Constructed from anodised aluminium with brass locking cams, it features a TTMA flange and integrated check valve, sealing when disconnected. Lightweight, durable, and easy to maintain, it is ideal for frequent hydrocarbon vapour loading operations.

Need something bespoke?

We can engineer to your specific requirements - today.

Delivery available worldwide

Contact us if you have any questions.
API Vapour Coupler
API Vapour Coupler
API Vapour Coupler

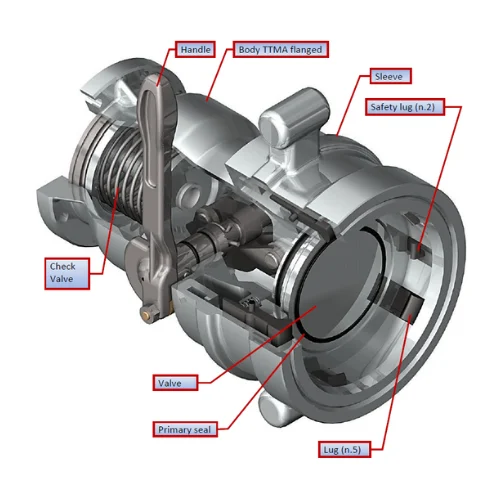

Descriptions of the body of a API Vapour Coupler
Descriptions of the body of a API Vapour Coupler
3 x 4" API Vapour Couplers
3 x 4 API Vapour Couplers
API Vapour Coupler with TTMA Flanges
API Vapour Coupler with TTMA Flanges

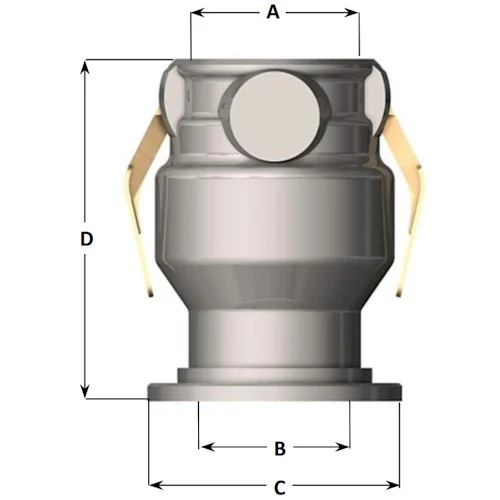

Dimensions of the API Vapour Coupler
Dimensions of the API Vapour Coupler
2 x 4" API Couplers
2 x 4 API Couplers

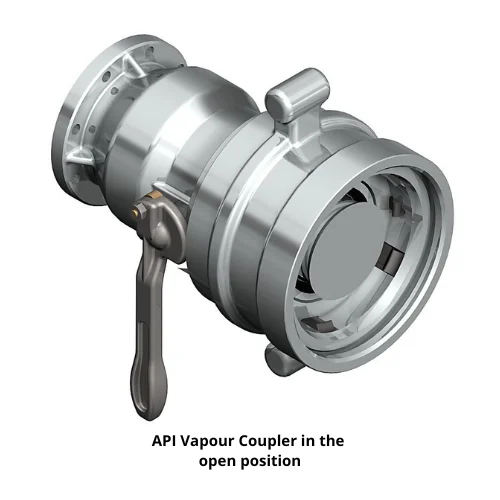

API Vapour Coupler in the open position
API Vapour Coupler in the open position

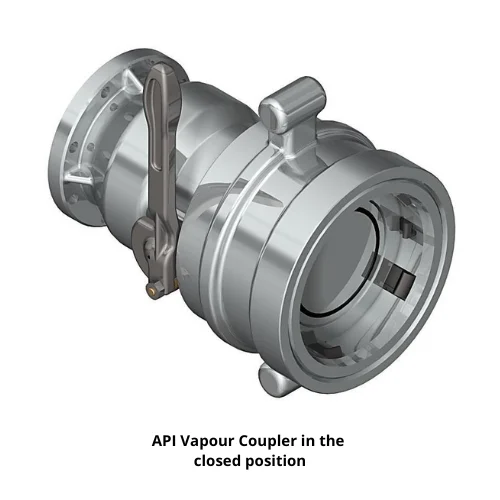

API Vapour Coupler in the closed position
API Vapour Coupler in the closed position

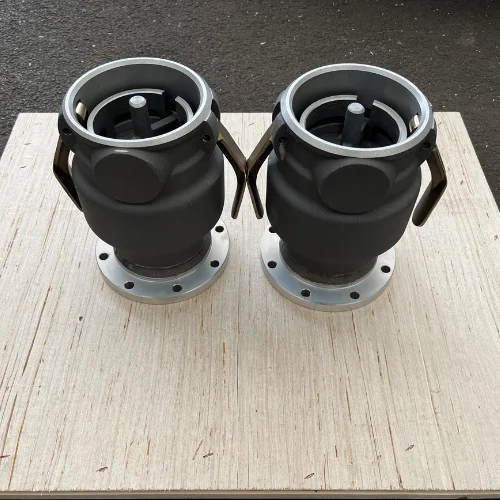

2 x API Vapour Couplings
2 x API Vapour Couplings
Contact us
Description

API Vapour Couplers are designed for road tanker bottom loading systems and manufactured in accordance with API RP1004. This coupler connects directly to a tank truck’s male vapour adaptor, ensuring safe and efficient vapour handling during loading operations.

Equipped with a TTMA flange and an integrated check valve, the coupler remains sealed when not connected to a tanker. The two-part cam-and-groove locking system is engaged via levers on either side, providing secure and reliable attachment.

Available in 4” size only, API Vapour Couplers are constructed from anodised aluminium with brass locking cams for durability. Weighing 3.8 kg, it operates reliably in temperatures from -40°C to 65°C and is easy to maintain, making it ideal for frequent hydrocarbon vapour loading applications.

Contact information:

Tel: +44 (0) 1763 248 650

Email: sales@ewfm.co.uk

To keep up to date with news on how we are supporting our customers, our latest blogs and new services available, keep checking in on our website throughout the year and follow us on social media.

Additional Specifications

Available Sizes:
4”

Material:
Aluminium

Pressure:
Up to 1 Bar G

Media:
Vapour products

Connections:
BSP / NPT / Metrical Thread / Flanged Inlet

Seals:
Viton®
